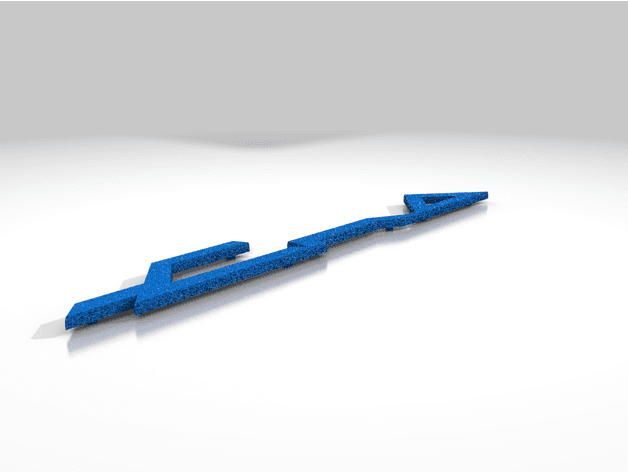

Aurebesh Ford C-MAX Body Emblem

Designed to replace the Rear/Side logos on my 2013 C-MAX Energi SEL. The logo is almost the same size as the original, with the "MAX" taking up almost exactly the same footprint and the 'C' a little taller. Printed in Elegoo Translucent ABS-like resin. Printed on Mars Pro at.035 layer height. The 'C' has raised edges to pour in resin/paint to fill the inside and the "MAX" is an upper and lower piece with pegs to fit together so they can be painted independently. Tolerance is acceptable for resin printing, trying to print this piece on an FDM would require some adjustment. Note that the "MAX_upper" piece is extremely fragile at the letter-intersections. I recommend slotting it into the "MAX_lower" piece if you need to sand it or anything to avoid damage. Note that the upper portion of the 'A' in "MAX" is also 2-piece but does not attach to the rest of the logo in any way. A spacing template has been included to help with placement, but the tolerances are a little off so pieces will not slide through it easily, still helpful overall so I included it. "MAX" upper and lower pieces were attached together with superglue (cyanoacrylate) and to the car with 3M Super Strength Molding Tape (Auto) https://www.walmart.com/ip/3M-Super-Strength-Molding-Tape-03609-1-2-in-x-5-ft-1-Roll/16913678
