BOSCH MAP Sensor Adapter (VW/Audi)

0 downloads34 views0 likes

Download at source

Shared by

3DPrintedCarPart

Verified

Description

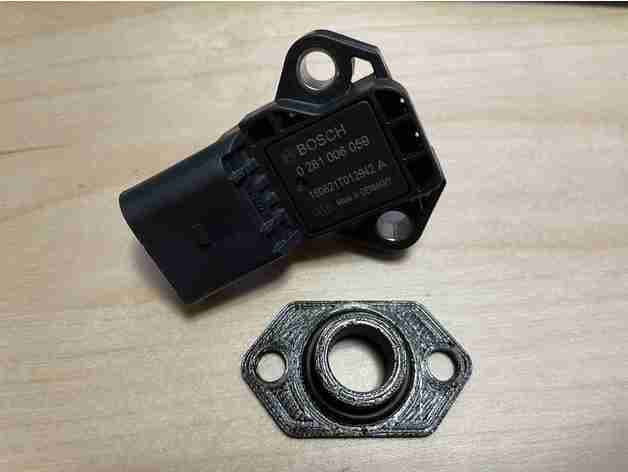

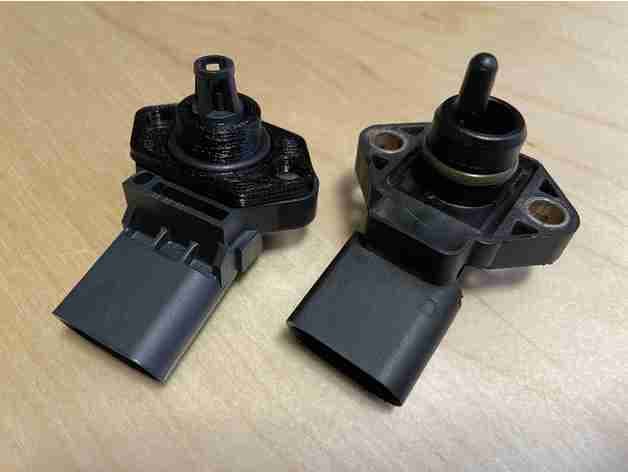

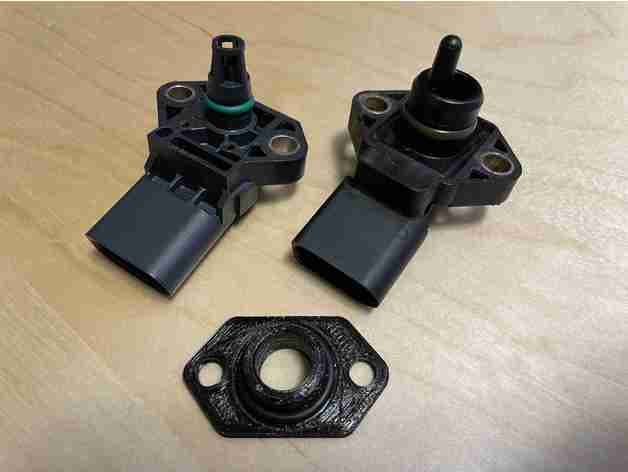

This is an Adapter to use a BOSCH 0 281 006 059 Manifold Absolute Pressure Sensor in place of the original BOSCH 0 281 002 177 (VW/Audi PartNo. 038 906 051). The hole in the original pipe was to wide to fit the new sensor so i designed this piece to be used with it. Note: an additional o-Ring seal is needed for the adapter to make an airtight seal with the pipe. The new sensor has a greater pressure range and is thus mandatory for the build it is being used in. It was specifically designed for the pressure pipe coming from the intercooler on a 1999 Audi S3 8L running a 1.8T engine but it should fit other applications as well. My printer is usually very accurate but for a perfect fit you may have to scale the part up/or down a bit.
