Dodge Challenger (3.6L) oil catch can mount

0 downloads36 views0 likes

Shared by

3DPrintedCarPart

Verified

Description

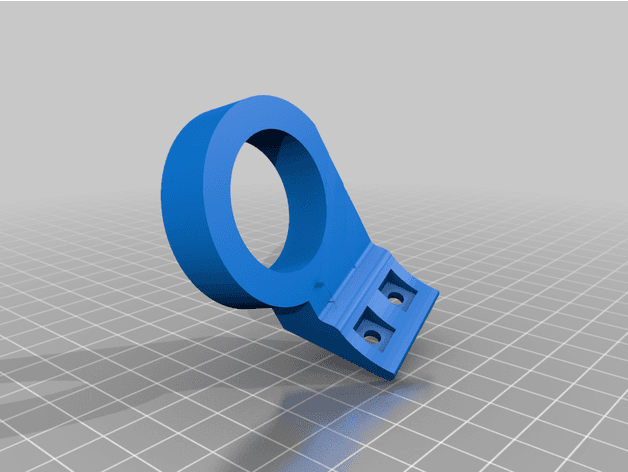

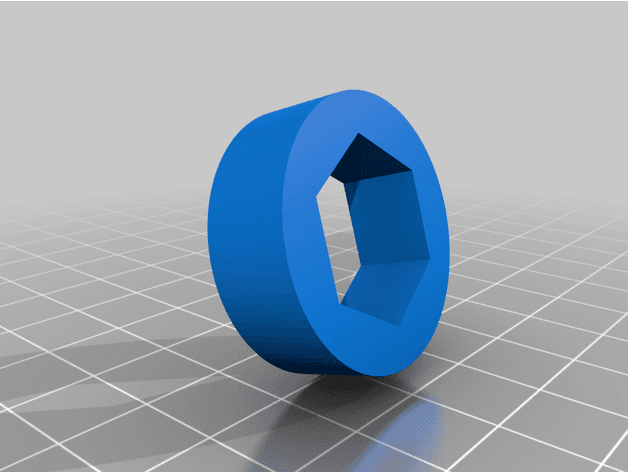

Want to add a catch can. Do not want to drill holes. This mount is clamped onder the jump start ground post and slides over the big suspension nut next to the fuse box. I printed in ABS, PETG should also work. Like you can see on the pictures, i have to do all the plumbing. Time will tell if this design nails my problem, feels firm so i think ik will hold up. the left side of this mount leans agains the inner wheel arch, i think it is a good idea to stick some tape between that part, rubbing may cause damage to the paint.
