Fiat / Alpha Romeo Phone Mount for GPS plug - Ark rework

0 downloads39 views0 likes

Download at source

Shared by

3DPrintedCarPart

Verified

Description

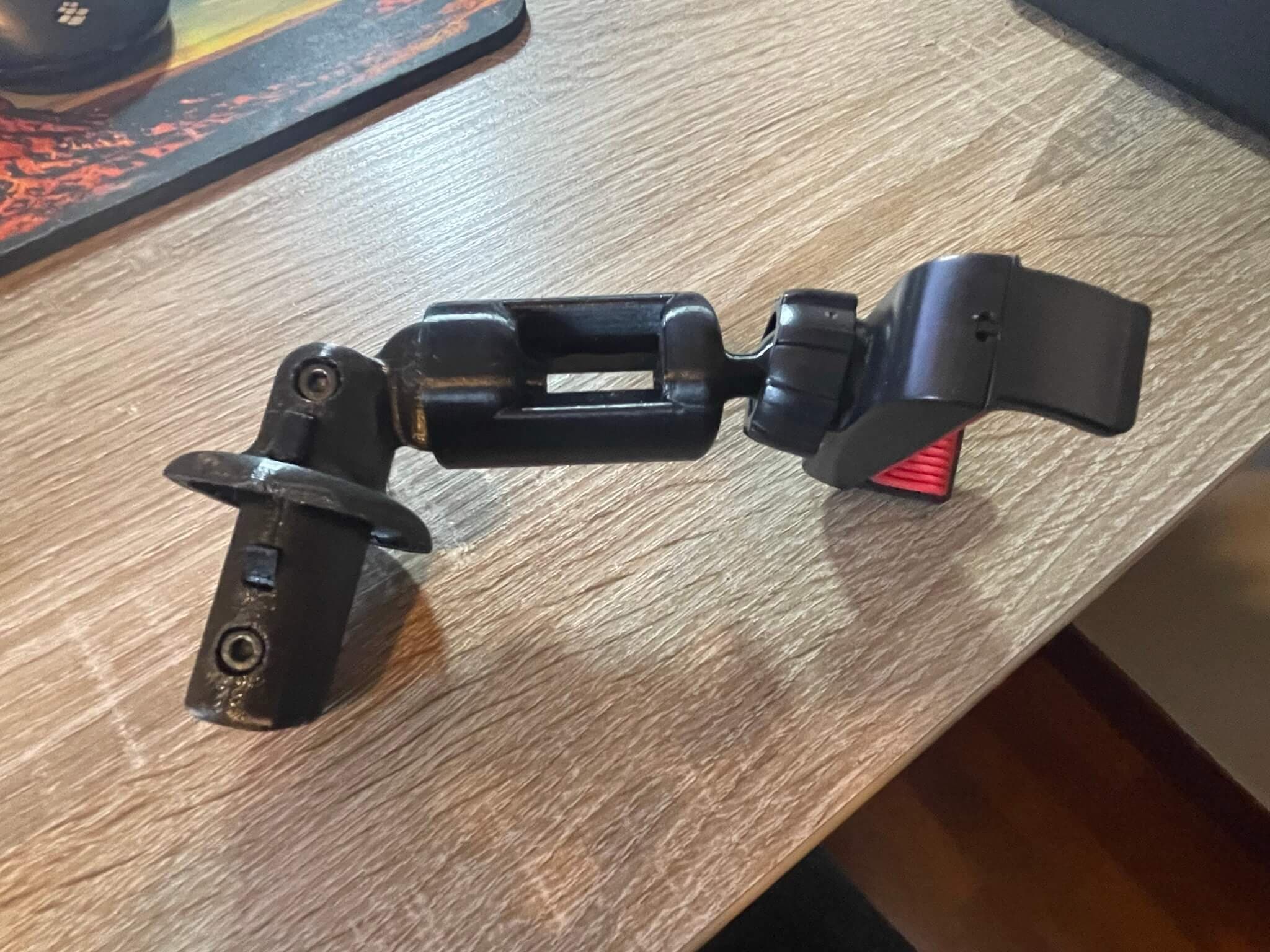

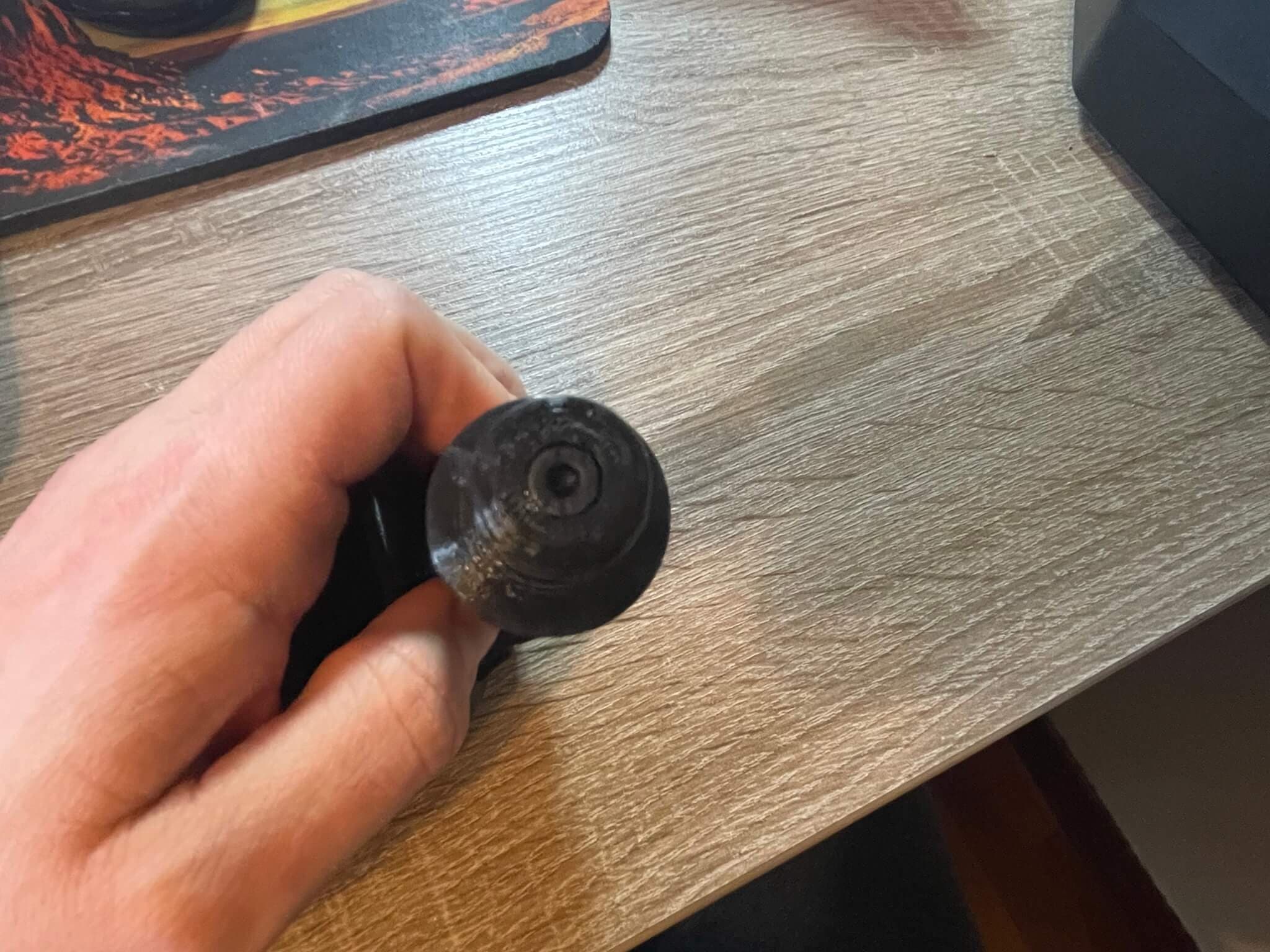

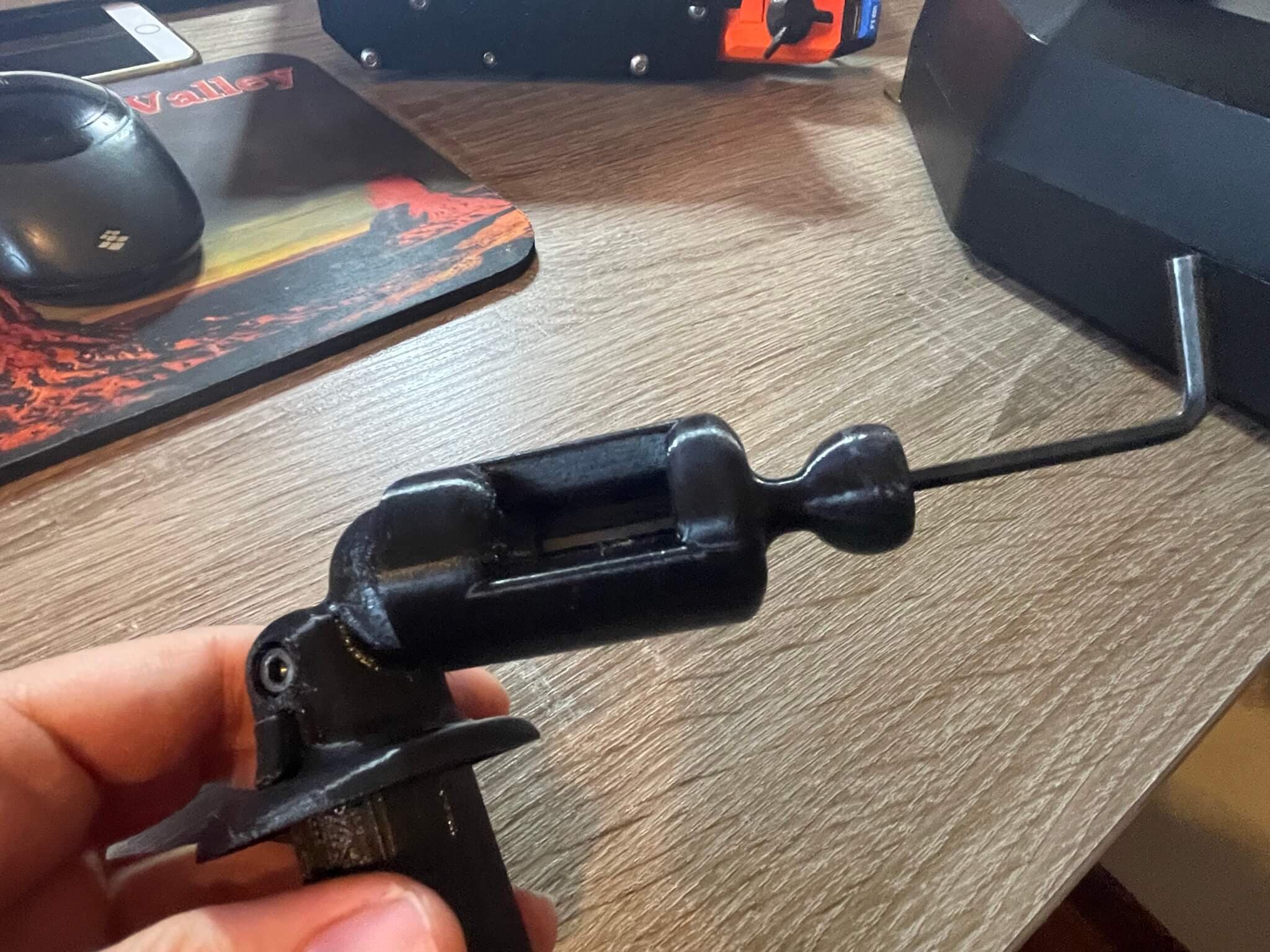

This is a simple rework of the arm of the design of russiancatfood's ( https://www.thingiverse.com/thing:696271 ) that i like so much. I don't like the original square arm so i decided to make a personal rework. I've integrated a ball joint (the original ball joint scaled 5% more) on the top to plug in directly on the phone older with this type of joint. The hole on the top have a double purpose: - a pass for a allen key to tighten the screw on the dash plug - a space where insert a M4x25 hex screew to reinforce the small arm that join the main body with the ball joint. I've printed it vertically with supports.
