STL file	Role	Source size	PETG / ASA 20%	PETG / ASA 25%	100% solid	Recommendation
panda_drawer.stl	Primary model	672.3 KB STL	Slice file	Slice file	Slice file	Ensure a snug fit by adjusting the handle gap size according to your smartphone's dimensions

Saved setup guidance is used for material, infill, support, and per-file recommendation text; editable numbers are planning estimates only.

Dashboard

Fiat Panda 169 Drawer and Smartphone Holder

0 downloads52 views0 likes

Shared by

3DPrintedCarPart

Verified

Description

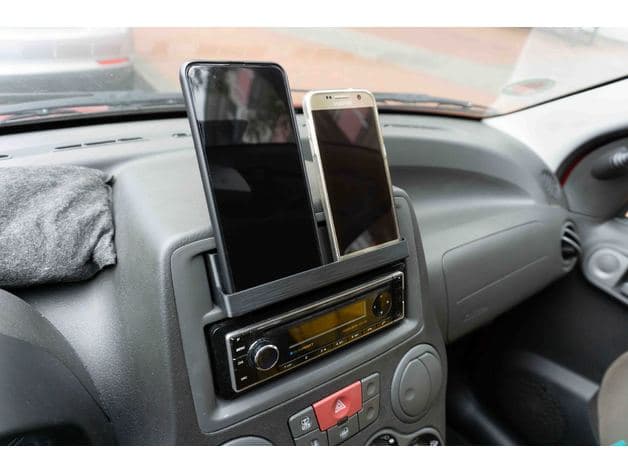

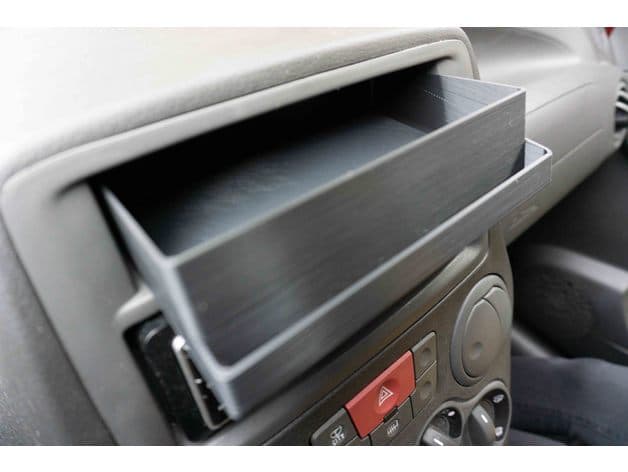

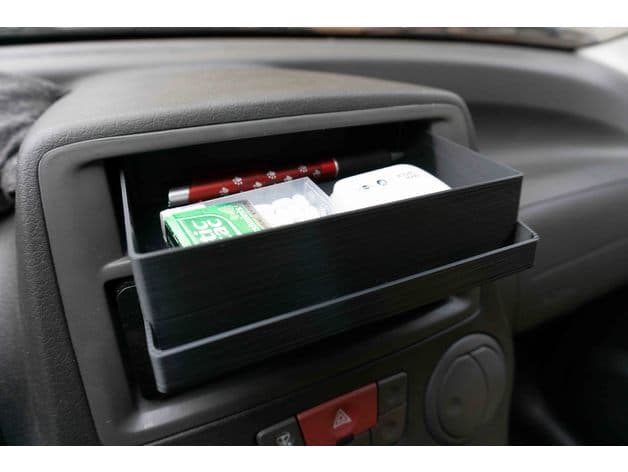

A parametric drawer with an optional handle that holds slim items such as smartphones. Fits inside the rectangular storage gap above the radio in the dashboard of a Fiat Panda 169 (built between 2003 and 2012). The default handle gap size of 11 mm should be a snug fit for a typical cased smartphone, but if your phone is thicker or thinner, this model is fully customizable in OpenSCAD. You can also disable the handle in case you simply want to cover that awkward gap in the dashboard. The bespoke fit and the angle of the dashboard help keep the drawer in place. You can further increase stability by storing weights inside the drawer. I release this model and its SCAD code into the public domain, so feel free to do anything you please with it without asking for my permission. But if you wish to honor my work, a tip is still appreciated.:).
