Ford 3V Timing chain wedge tool for Cam Phaser replacement
Files (1)
Reference shelf
Recommended filament for this print
Product references matched to the published material guidance. Confirm diameter, heat resistance, colour, and printer compatibility.
| Referenced item | What to verify | Price & availability |
|---|---|---|
| ABS filamentAmazon · Affiliate link | Amazon product page for 1.75 mm ABS; use an enclosure and suitable ventilation, and verify temperature requirements and seller. | Check price at Amazon |
Affiliate disclosure: if you buy through an eligible link, 3DPrintedCarPart may earn a commission at no extra cost to you. As an Amazon Associate I earn from qualifying purchases. Confirm product specifications, compatibility, seller terms, and vehicle safety before ordering or using anything. Amazon may redirect you to a nearby supported store; otherwise the original Amazon.com page remains available.
License & use
The file license permits commercial reuse, subject to any applicable attribution or share-alike terms. License status does not verify vehicle fitment, OEM rights, design patents, or safety.
Shared by
Ted Baran (Plastic_Innovations)Designers selling from the US, Canada, the UK, the EU/EEA (except Iceland), Switzerland and Gibraltar can also list separate original designs for sale and receive 80% of the listing price, paid out by Stripe in your local currency (conversion fees may apply). Claiming credits you here; it doesn't put this imported part up for sale.
Description

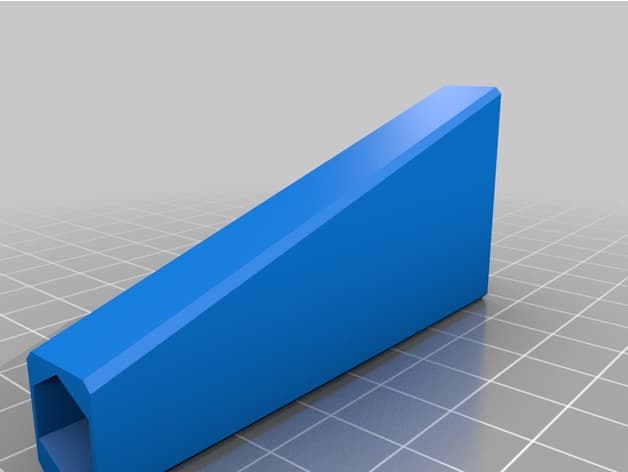

I designed this Timing Chain Wedge Tool for all 2004 and up Ford 4.6L & 5.4L, 3 Valve modular engines. This Timing Chain Wedge will help you get the job done quickly and easily! It allows for Easy Cam Phaser replacement Without Removing the Timing Cover. Also allows you to remove the camshaft without losing chain tension. Only additional hardware required is 3ft of #10-24 threaded rod, nyloc nuts, and a small handle. Assemble like pics and bend the threaded rod to aid in installation of tool. NOTE- Only print in Flexible PLA, nylon, or ABS. Here are the instructions. The video is for a Cam Phaser lock-out kit, but the procedures for using the tool are identical if only replacing noisy Cam phasers. https://www.youtube.com/watch?v=YsoU2zEWTyE
Compatible Vehicles
Originally published on thingiverse.com by Ted Baran (Plastic_Innovations) · License: CC BY
