Ford 5.0 crankshaft repair sleeve and seal installation tool
Files (1)
Reference shelf
Recommended filament for this print
Product references matched to the published material guidance. Confirm diameter, heat resistance, colour, and printer compatibility.
| Referenced item | What to verify | Price & availability |
|---|---|---|
| PETG filamentAmazon · Affiliate link | Amazon product page for 1.75 mm PETG; confirm colour, spool size, print temperature, seller, and delivery region. | Check price at Amazon |
| ASA filamentAmazon · Affiliate link | Amazon product page for 1.75 mm ASA; use an enclosure and suitable ventilation, and confirm seller and regional availability. | Check price at Amazon |
Affiliate disclosure: if you buy through an eligible link, 3DPrintedCarPart may earn a commission at no extra cost to you. As an Amazon Associate I earn from qualifying purchases. Confirm product specifications, compatibility, seller terms, and vehicle safety before ordering or using anything. Amazon may redirect you to a nearby supported store; otherwise the original Amazon.com page remains available.
License & use
The file license permits commercial reuse, subject to any applicable attribution or share-alike terms. License status does not verify vehicle fitment, OEM rights, design patents, or safety.
Shared by
Sc Jo (imadesignernoob)Designers selling from the US, Canada, the UK, the EU/EEA (except Iceland), Switzerland and Gibraltar can also list separate original designs for sale and receive 80% of the listing price, paid out by Stripe in your local currency (conversion fees may apply). Claiming credits you here; it doesn't put this imported part up for sale.
Description

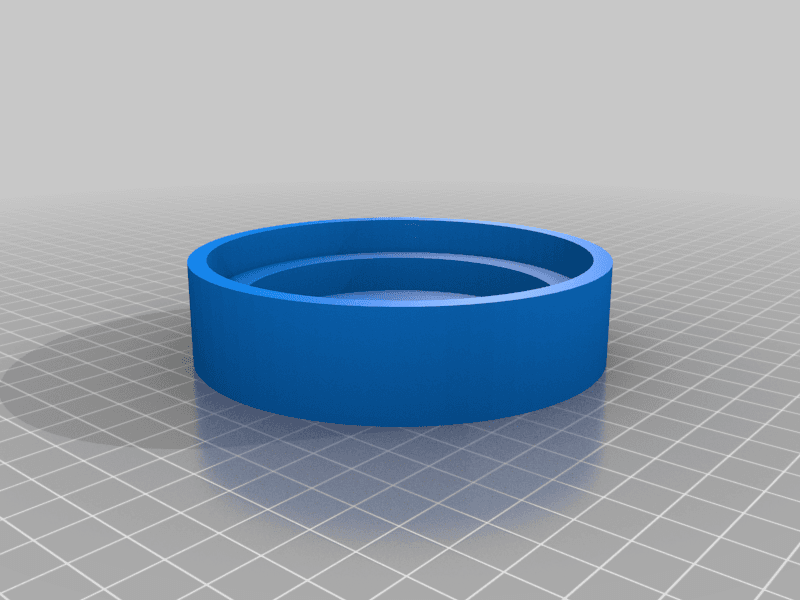

I made this tool to install a rear crankshaft sleeve on a Ford 5.0 engine. This tool also can install the rear main seal too. I printed with PETG at 50% infill. I used this with a FelPro 16250 crankshaft repair sleeve which for 5.0, 4.2, 3.9, 2.8L engines. I then used this to install a FelPro BS 40620 rear main seal which is used on many Ford engines: 6.8, 5.8, 5.4,5.0, 4.6, 4.2, 3.9, 3.8, 3.0, 2.5, 2.3L I believe the Ford # is M-6701-B302 Note: a FelPro BS 40644 seal is PTFE and is NOT to be used with a repair sleeve.
Compatible Vehicles
Originally published on thingiverse.com by Sc Jo (imadesignernoob) · License: CC BY
