Files (1)
Based on 25% main infill across listed model files
Filament only at roughly $24/kg PETG / ASA
Uses 70 mm/s, 0.2 mm layers; verify supports in slicer
| STL file | Role | Source size | PETG / ASA 20% | PETG / ASA 25% | 100% solid | Recommendation |
|---|---|---|---|---|---|---|
| 6deg_tilt_vent4-Body.stl | Primary model | 82.8 KB STL | 12g $0.28 | 13g $0.30 | 28g $0.66 | Ensure proper orientation for optimal airflow and gauge fitment |
Saved setup guidance is used for material, infill, support, and per-file recommendation text; editable numbers are planning estimates only.
Ford Ranger Boost Gauge
Description

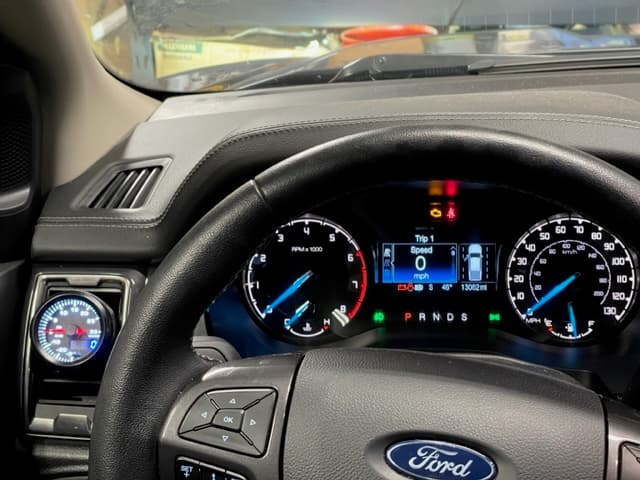

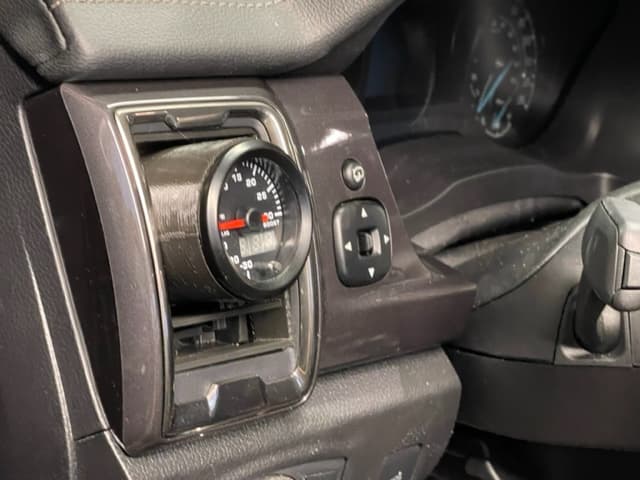

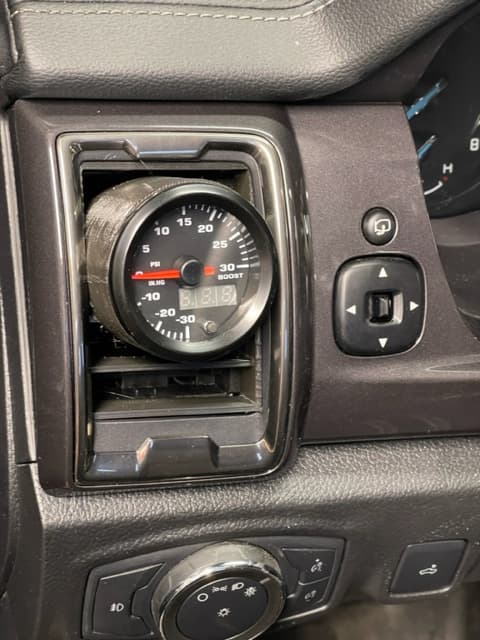

Created for the NEED of a real Boost Gauge in the 2019-2022 Ford Ranger. Fits in the drivers side window Air Vent. Version 3.0 (This version is angled towards the driver and 4 degrees down for the perfect angle: As seen on ranger5g.com 52mm gauge fitment Factory OEM LOOK Prints on most printers (90mm x 60mm) Secure fit of your boost gauge retained air flow management (vent still works) Radiused vents for good air flow and visual look Vent comes apart very nicely with several tabs. However the inside of the vent will need to be opened up for a 52mm gauge to seat flush. (I used a 2" hole saw in reverse) I just ran the drill inside the mount I printed as a guide. Very little needs to be removed. Modify as you need, please give me credit for the original design. Thank You.
Compatible Cars
Originally published on thingiverse.com by Dave Conditt (daczone) · License: CC BY
