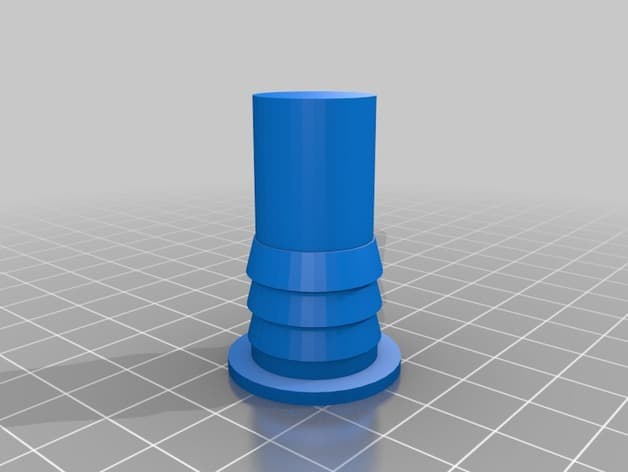

Intake Tube / Hose Plug (ASC Delete) for BMW vehicles - image

Files (2)

BMW_intake_elbow_plug.stl

STL

54.3 KB

BMW_intake_elbow_plug_-_long.stl

STL

55.4 KB

Print guidance estimate

Slicer data required

Print cost & setup estimate

Setup guidance plus saved or slicer-confirmed filament, cost, and time. Model file size is never treated as printable volume.

2 model files

Typical selected file

Slice required

Choose the needed variant and slice it; source file size is not printable volume.

Material cost

Slice required

Use the slicer's filament total; STL/3MF byte size is not a cost input.

Print time

Slice required

Slice with the recommended material, infill, orientation, and supports.

STL file	Role	Source size	PETG / ASA 20%	PETG / ASA 40%	100% solid	Recommendation
BMW_intake_elbow_plug.stl	Printable file	54.3 KB STL	Slice file	Slice file	Slice file	Ensure proper fit by checking the dimensions against your specific intake elbow
BMW_intake_elbow_plug_-_long.stl	Printable file	55.4 KB STL	Slice file	Slice file	Slice file	Ensure proper fit by checking the dimensions against your specific intake elbow

Saved setup guidance is used for material, infill, support, and per-file recommendation text; editable numbers are planning estimates only.

Mechanical/Functional

Intake Tube / Hose Plug (ASC Delete) for BMW vehicles

0 downloads48 views0 likes

Shared by

3DPrintedCarPart

Verified

Description

Plug designed for the ~17mm hole in the intake elbow, commonly needed to plug the extra hole on the new intake boot when deleting the ASC throttle body on e36 or Z3. Dimensions are based off of the original hose barb, which is a very tight fit, and just about perfect in ABS which it should be printed in anyway (or better yet nylon). Once in it's not coming out easily. It can be scaled to pretty much any size that might be needed. I also included "long" version which incorporates a stuffing reaching 40mm deep to take up most of the remaining dead space in a Mishimoto silicone boot. Not sure if this will work in the Samco boot (pretty sure it's not needed in the oem one), but if someone lets me know how deep those would need to be i can make adjustments. Doing a CCV delete / PCV catch can install? Check out my CCV Delete Hose Adapter Kit for BMW vehicles: https://www.thingiverse.com/thing:2941705

Compatible Cars

BMW (all models)

Published Jun 28, 2026Updated Jul 15, 2026

Originally published on thingiverse.com by Maciej Wojtulewicz (macelius) · License: CC BY
