Jeep Grand Cherokee (WK2) Console bin with Redarc trailer brake fitting
Shared by
3DPrintedCarPartDescription

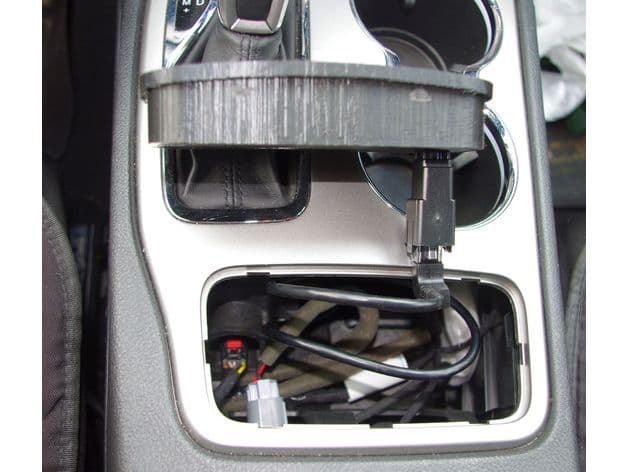

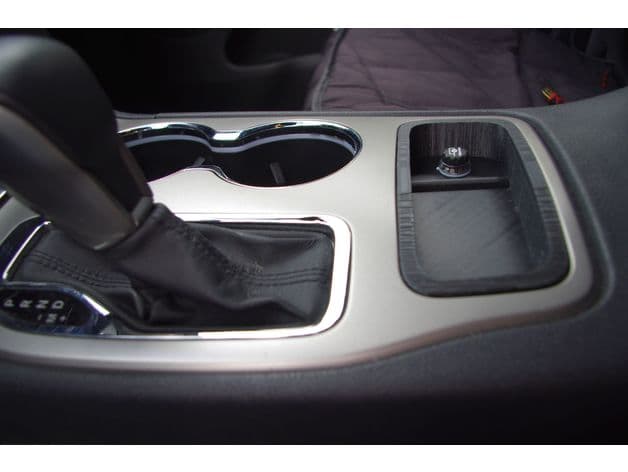

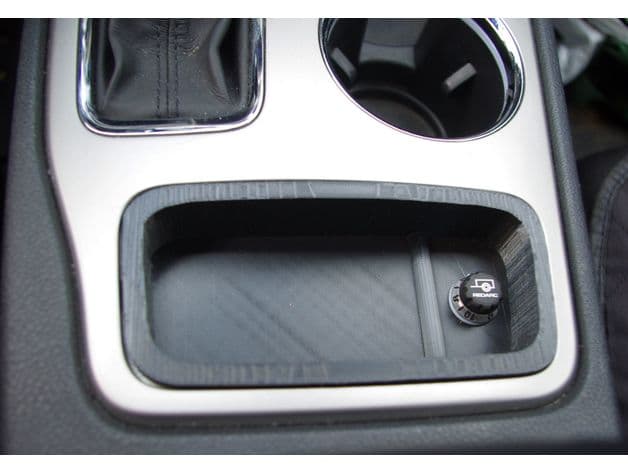

I needed to install a Redarc trailer brake on my '19 Jeep Grand Cherokee (WK2) (Quadra-Trac 1) and did not want to drill a hole in the center console or dash panel for the remote adjuster. The center shifter console pulls up easily, and there is plenty of room under the small storage bin for the remote. The small bin is easily removed by a couple clips molded into it. This print replaces the stock bin and it has the holes to mount the Redarc remote in it. It also makes the knob recessed a little so it is less likely to get damaged, but still enough room to adjust it. I have mine just resting in the center console with no issues. I may take a couple small dabs of silicone or 3m tape to secure it in, but I don't think it will be necessary. ***Original file "GCRedarc.stl" has been replaced with "GCRedarc2.stl" due to errors in the original file. Recommend using current file. (sorry).
Compatible Cars
Originally published on thingiverse.com by Coho Carl (cohocarl) · License: CC BY
