Vents

Jeep Vent Wrangler

0 downloads52 views0 likes

Shared by

3DPrintedCarPart

Verified

Description

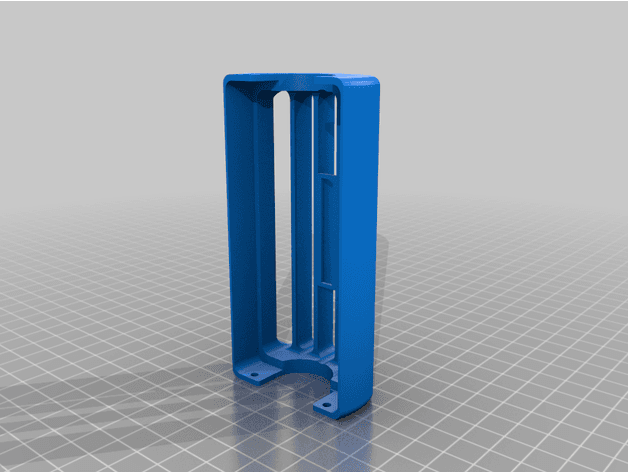

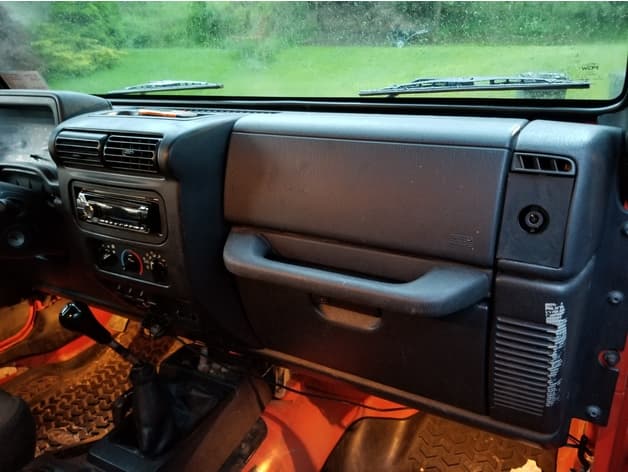

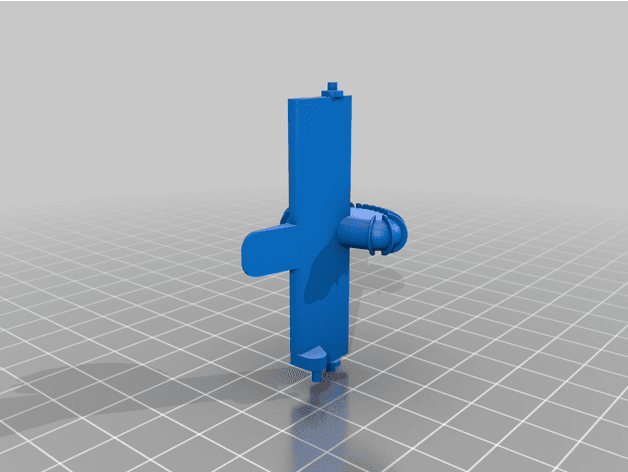

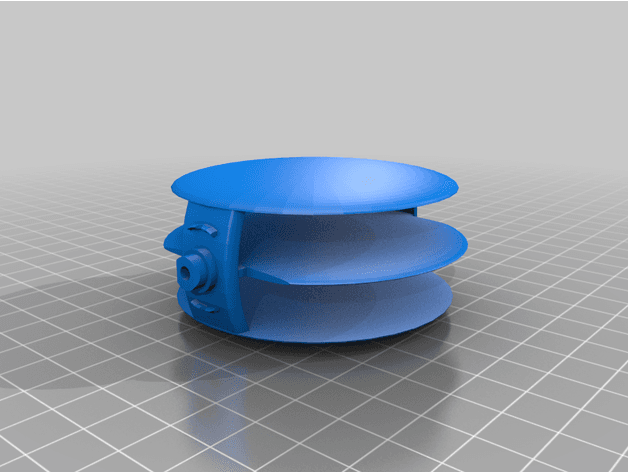

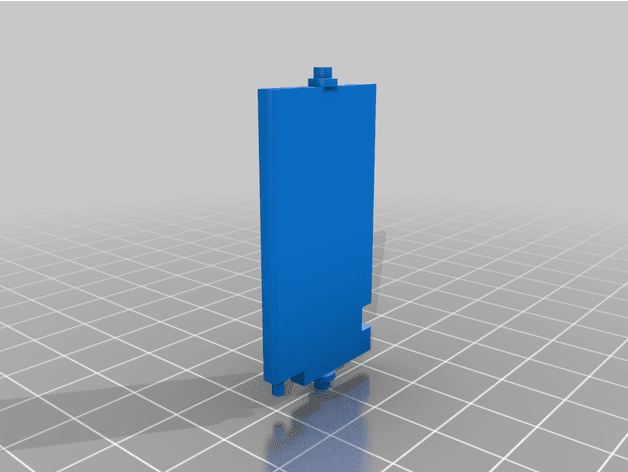

2002 Jeep Wrangler TJ. The vents were missing, missing parts, or cracked. Designed and printed new vents and vanes. The prototype ones in the photo are PLA which didn't survive the first cold day/hot vent application. The PLA warped substantially. Will need in ABS or PETG for final.
