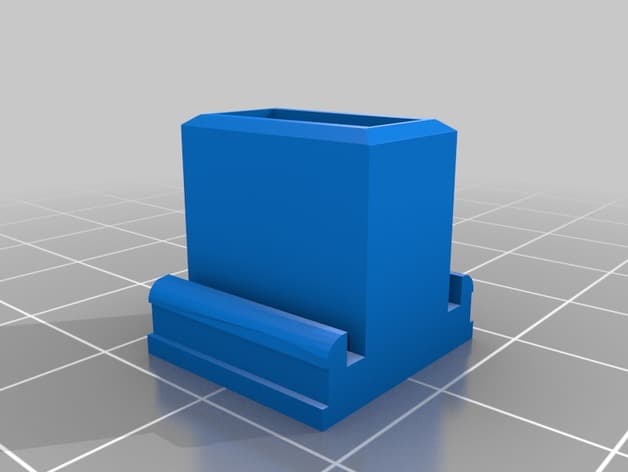

Jeep Wrangler Magnetic Dashcam Mobius Mount Headliner - image

Files (2)

Jeep_Wrangler_Mobius_Adapter.stl

STL

9.3 KB

Jeep_Wrangler_Mobius_Base_Mount.stl

STL

50.7 KB

Print guidance estimate

Slicer data required

Print cost & setup estimate

Setup guidance plus saved or slicer-confirmed filament, cost, and time. Model file size is never treated as printable volume.

2 model files

Typical selected file

Slice required

Choose the needed variant and slice it; source file size is not printable volume.

Material cost

Slice required

Use the slicer's filament total; STL/3MF byte size is not a cost input.

Print time

Slice required

Slice with the recommended material, infill, orientation, and supports.

STL file	Role	Source size	PETG 20%	PETG 25%	100% solid	Recommendation
Jeep_Wrangler_Mobius_Adapter.stl	Accessory piece	9.3 KB STL	Slice file	Slice file	Slice file	Small functional file: print slowly; consider 80–100% infill for durability.
Jeep_Wrangler_Mobius_Base_Mount.stl	Mount / bracket	50.7 KB STL	Slice file	Slice file	Slice file	Ensure correct polarity of magnets during assembly

Saved setup guidance is used for material, infill, support, and per-file recommendation text; editable numbers are planning estimates only.

Interior

Jeep Wrangler Magnetic Dashcam Mobius Mount Headliner

0 downloads32 views0 likes

Shared by

3DPrintedCarPart

Verified

Description

Have a quick changing dashcam with no tools needed. The Mobius (v1) dashcam will slide in and out of the base, in which both the camera and the base are magnetically mounted (the camera magnetically clings to the base, and the base magnetically clings to a bolt). This allows for quickly stashing you dashcam if you're parking with the top down or similar. I also built it so it won't interfere with the sunvisor. The base has a star pattern, so you can angle the direction of the camera as necessary. Requirements: - Print the 2 models in PETG, since we need heat resistance! - You'll need 3 magnets, of type 12mm x 5mm N35 Super Strong Round Disc Rare Earth Neodymium Magnets. I bought mine here: https://www.umagnets.com/p/round-magnet-n50-12mm-x-5mm-nickel-plated/ - Super glue to glue them in with - A mobius v1 action cam - The Mobius actioncam mount/cradle that came with the device. Install: Glue the magnets in, make sure the polarities are the right direction first by test fitting! Add the printed adapter to the cradle that came with the device. Run a dash cam wire up the post, and mount. Tada!
