Files (4)

Left_Fold.stl

STL

64.7 KB

Left_Net_Frame.stl

STL

3.6 KB

Right_Fold.stl

STL

65.2 KB

Right_Net_Frame.stl

STL

3.6 KB

Print guidance estimate

Slicer data required

Print cost & setup estimate

Setup guidance plus saved or slicer-confirmed filament, cost, and time. Model file size is never treated as printable volume.

4 model files

Typical selected file

Slice required

Choose the needed variant and slice it; source file size is not printable volume.

Material cost

Slice required

Use the slicer's filament total; STL/3MF byte size is not a cost input.

Print time

Slice required

Slice with the recommended material, infill, orientation, and supports.

STL file	Role	Source size	PETG / ASA 20%	PETG / ASA 25%	100% solid	Recommendation
Left_Fold.stl	Choose left variant	64.7 KB STL	Slice file	Slice file	Slice file	Use PETG / ASA, 4 walls, 25% infill. Pick the matching side before printing.
Left_Net_Frame.stl	Choose left variant	3.6 KB STL	Slice file	Slice file	Slice file	Small functional file: print slowly; consider 80–100% infill for durability.
Right_Fold.stl	Choose right variant	65.2 KB STL	Slice file	Slice file	Slice file	Use PETG / ASA, 4 walls, 25% infill. Pick the matching side before printing.
Right_Net_Frame.stl	Choose right variant	3.6 KB STL	Slice file	Slice file	Slice file	Small functional file: print slowly; consider 80–100% infill for durability.

Saved setup guidance is used for material, infill, support, and per-file recommendation text; editable numbers are planning estimates only.

Interior

Jeep Wrangler - Window Insert

0 downloads24 views0 likes

Shared by

3DPrintedCarPart

Verified

Description

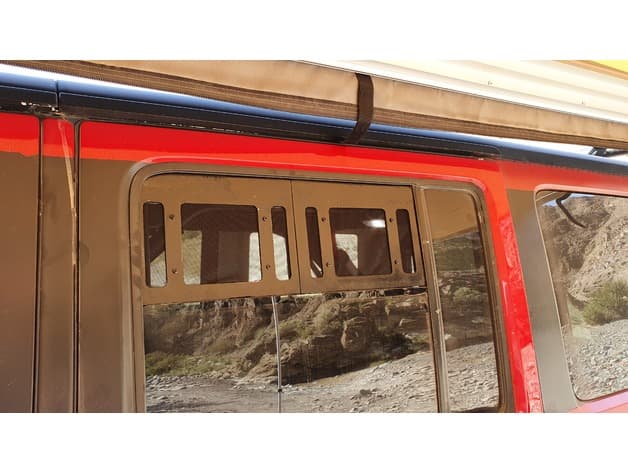

We go camping and sleep in the car. So for ventilation, while we sleep, and to keep the bugs out, I looked for a solution. I couldn't find anything so I designed this. You unfold it into the window slide and then roll up your window until it pushes in place. You will need: Some kind of net 3x 25mm 3mm Bolts with Nuts (For the hinge) I used some leftover 3mm bolts to bolt on the net frames to the folding parts but you can use glue PENDING: I am working on adding a 120mm 5V fan to the holes in the middle. Still working on it as I go. Please feel free to leave comments for improvements.
