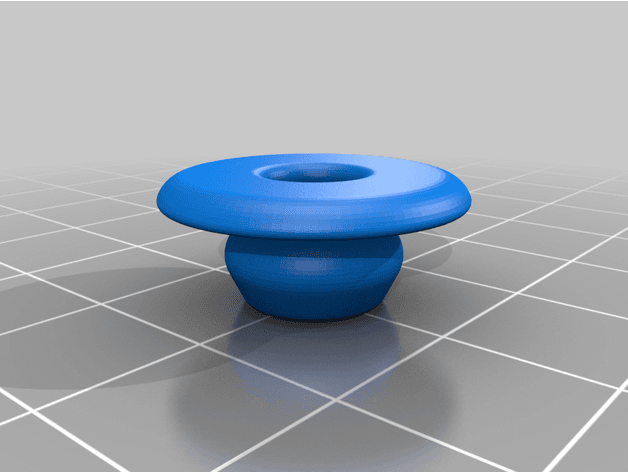

Lotus Elise S2 K series Access Panel Grille Front Centre Corner Gromit - image

Files (1)

Elise_S2_KSeries_Access_Panel_Grille_Front_Center_Corner_Gommit_v3.stl

STL

578.9 KB

Print guidance estimate

Slicer data required

Print cost & setup estimate

Setup guidance plus saved or slicer-confirmed filament, cost, and time. Model file size is never treated as printable volume.

1 model file

Recommended kit

Slice required

Slice the required model files; source file size is not printable volume.

Material cost

Slice required

Use the slicer's filament total; STL/3MF byte size is not a cost input.

Print time

Slice required

Slice with the recommended material, infill, orientation, and supports.

STL file	Role	Source size	TPU 20%	TPU 40%	100% solid	Recommendation
Elise_S2_KSeries_Access_Panel_Grille_Front_Center_Corner_Gommit_v3.stl	Primary model	578.9 KB STL	Slice file	Slice file	Slice file	Ensure the gromit is printed with the correct orientation to fit the factory hole in the fiberglass centre ridge.

Saved setup guidance is used for material, infill, support, and per-file recommendation text; editable numbers are planning estimates only.

Grilles

Lotus Elise S2 K series Access Panel Grille Front Centre Corner Gromit

0 downloads34 views0 likes

Shared by

3DPrintedCarPart

Verified

Description

This gromit was designed so an aftermarket access panel grille could be fitted to an 03 Elise 111S, I imagine it will fit to many more models also but I can't confirm. I had a crummy home made grille on my Elise when I bought it which I wanted to replace with the below grilles from Elise Parts however the front corner must be anchored via a metal stud into a factory hole in the fiberglass centre ridge. Normally this hole has a gromit in it but mine were missing so I designed and printed this gromit using flexible TPU filament, it works perfectly on my car. https://www.eliseparts.com/shop/discounted-items/used-parts/lighting/bodywork-br-styling/exterior/grills/s2-grill-replacement-set/
