Mazda bongo wiper fluid hose clip

0 downloads34 views0 likes

Download at source

Shared by

3DPrintedCarPart

Verified

Description

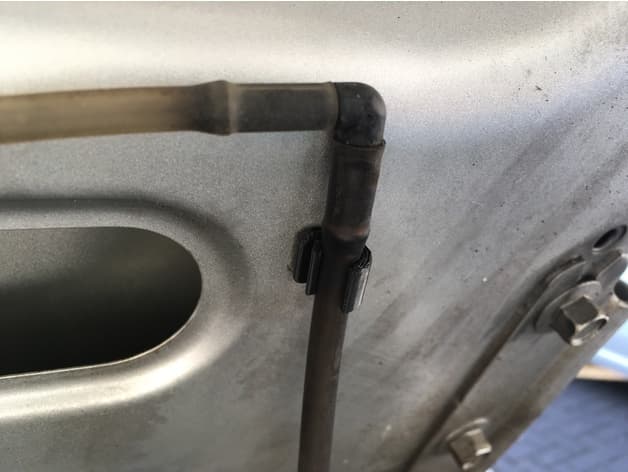

The clip for the winshield wiper fluid hose under the bonnet of my mazda bongo was broken. You can buy original replacements, but figured I'd have a try at designing a replacement. Seems to work ok. Although it's the same kind of clip, I wouldn't use this for the bonnet support rod, because that one needs to endure a lot more wear and tear. I'd suggest possibly resizing to 105% or maybe 110%, as the original fits but is a bit wobbly in the bonnet (hose is nice and snug). For printing, rotate 90 degrees so that the round clip is sideways. Using a raft and supports helps. I went for 100% infill because it's such a small part, but probably shouldn't matter.
