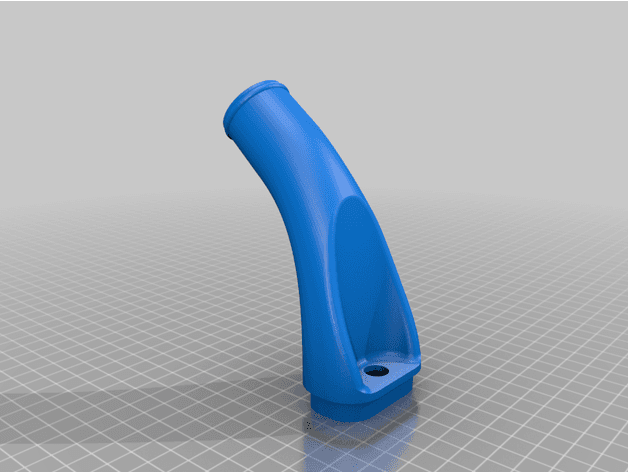

N54 Vacuum adapter for Intake Port Media Blasting - image

Files (1)

BMW_N54_Blaster.stl

STL

1.1 MB

Print guidance estimate

Slicer data required

Print cost & setup estimate

Setup guidance plus saved or slicer-confirmed filament, cost, and time. Model file size is never treated as printable volume.

1 model file

Recommended kit

Slice required

Slice the required model files; source file size is not printable volume.

Material cost

Slice required

Use the slicer's filament total; STL/3MF byte size is not a cost input.

Print time

Slice required

Slice with the recommended material, infill, orientation, and supports.

STL file	Role	Source size	PETG / ASA 20%	PETG / ASA 100%	100% solid	Recommendation
BMW_N54_Blaster.stl	Primary model	1.1 MB STL	Slice file	Slice file	Slice file	Print with the round outlet on the build plate

Saved setup guidance is used for material, infill, support, and per-file recommendation text; editable numbers are planning estimates only.

Tools & Jigs

N54 Vacuum adapter for Intake Port Media Blasting

0 downloads50 views0 likes

Shared by

3DPrintedCarPart

Verified

Description

As the title says, this is a vacuum adapter for walnut blasting the intake port of your N54/N55-equipped BMW. If you're wondering what that is, here's a procedure: http://www.e90post.com/forums/showthread.php?t=682116 It seems obvious that this would be a shoo-in for a 3D printed part, but I looked all over for a 3D print file for this application and could find none, so I made my own! Apparently because this part looks like the one made by BMW, BMW flagged it a while back as violating their IP rights and it was taken down by Thingiverse. This is complete BS, because while it may look like BMW's, it is completely of my own design and likely inferior to the one they make. anyway. If you think you might need this, I would encourage you to download it now. I apologize to anyone that has sent me an email about this in the past, but I am back into 3D printing now and will respond as below. The outlet is sized for a 1 1/4" shop-vac hose, and the hole is sized for 1/8" black pipe, but I can change the diameters easily. Just send me an email and I can post a new part file with your desired diameter. Also, if you want me to print one for you, just send me an email and we can work something out! You don't have to have the media blaster mentioned in the post--you can modify any cheap sandblaster to work: http://www.bimmerforums.com/forum/showthread.php?1881774-DIY-N54-Intake-Valve-Walnut-Blasting Because this is a tool and you will likely be yanking and pulling on it, I would suggest printing at 100% infill. The walls are only 1/8" thick, so it won't use that much material. Print it with the round outlet on the build plate with a brim, not with the oval down as shown in the blue print file pic.
