Files (1)

Intake_1_2.STL

STL

3.1 MB

Print guidance estimate

Uses saved filament metadata

Print cost & setup estimate

Setup guidance plus saved or slicer-confirmed filament, cost, and time. Model file size is never treated as printable volume.

1 model file

Recommended kit

50g

Based on 40% main infill across listed model files

Material cost

$1.20

Filament only at roughly $24/kg PETG / ASA

Print time

2.0h saved / 1.4h–2.4h estimate

Uses 70 mm/s, 0.2 mm layers; verify supports in slicer

STL file	Role	Source size	PETG / ASA 20%	PETG / ASA 40%	100% solid	Recommendation
Intake_1_2.STL	Primary model	3.1 MB STL	37g $0.89	50g $1.20	88g $2.12	Use a high-temperature resistant material due to engine bay heat soak

Saved setup guidance is used for material, infill, support, and per-file recommendation text; editable numbers are planning estimates only.

Mechanical/Functional

NA Mazda Miata Intake

0 downloads182 views0 likes

Shared by

Michael Chen

Verified

Description

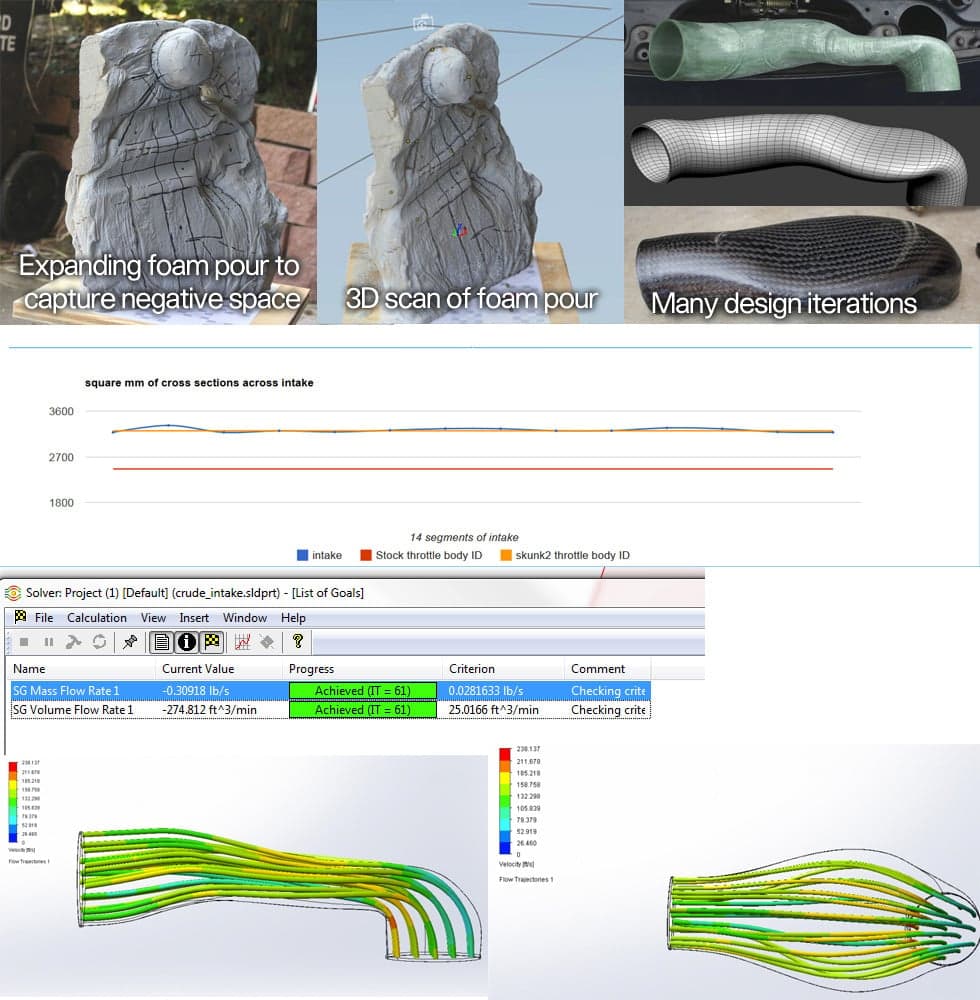

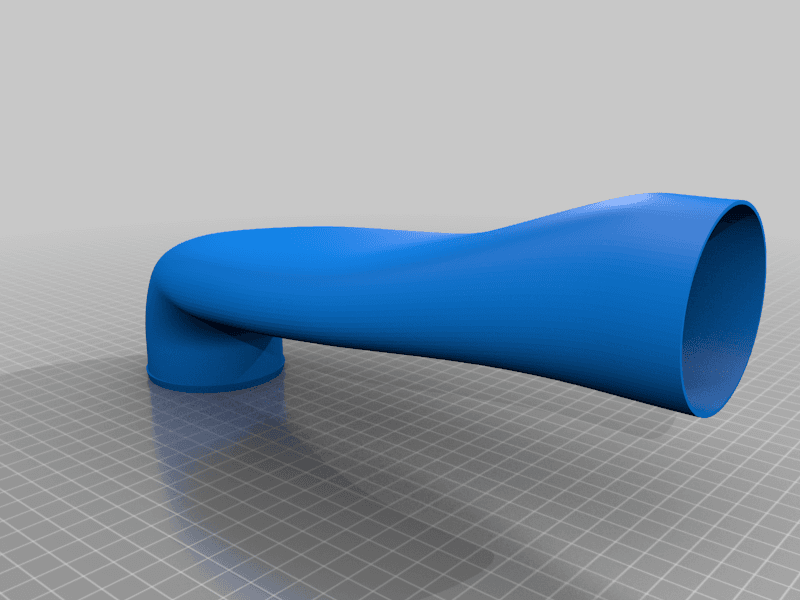

This is the updated design from my older cold air intake published elsewhere. Significantly better flow, CFD says it will outflow a typical 90 degree elbow. Included are two files, one with a shell thickness of 1.2mm and another with just a skin that can be shelled to whatever wall thickness is needed. For clearance, do not expand the skin more than .5mm. This design was intended for a thin wall thickness. Engine bay heat soak can causes the part to see very high temps. Enough that PLA is a non starter, and ABS is marginal. My plan was to print these with a 1.2mm nozzle in straight polycarbonate (not one of the more easily printed PC blends)- For printing I was planning to hack together a gcode file from two sperate slice results, with the elbow side at the bottom transitioning into a vase mode print after the bend. To set this part up you will need: Assuming a MAP based aftermarket ECU you will need:.
