Files (2)
Choose the needed variant and slice it; source file size is not printable volume.
Use the slicer's filament total; STL/3MF byte size is not a cost input.
Slice with the recommended material, infill, orientation, and supports.
| STL file | Role | Source size | PETG / ASA 20% | PETG / ASA 25% | 100% solid | Recommendation |
|---|---|---|---|---|---|---|
| vq35hr_rod_splitter_1.stl | Printable file | 563.8 KB STL | Slice file | Slice file | Slice file | Ensure a standard 5/16" X 1.00" bolt, nut, and washer are available for assembly |
| vq35hr_rod_splitter_2.stl | Printable file | 516.9 KB STL | Slice file | Slice file | Slice file | Ensure a standard 5/16" X 1.00" bolt, nut, and washer are available for assembly |
Saved setup guidance is used for material, infill, support, and per-file recommendation text; editable numbers are planning estimates only.

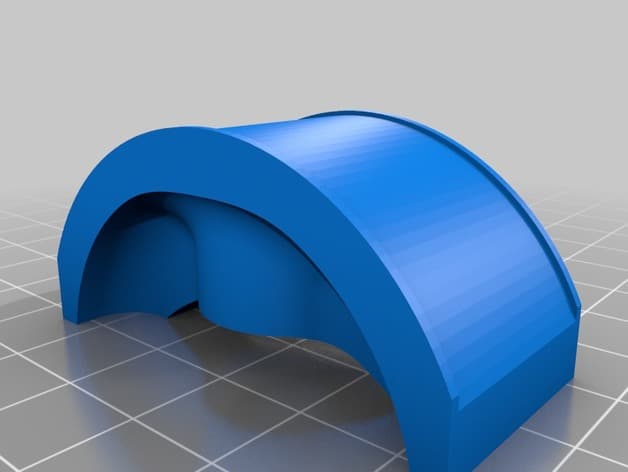

Nissan VQ35HR / VQ37VHR Connecting Rod Cap Splitter
Shared by
3DPrintedCarPartDescription
I was in need of a connecting rod cap splitting tool for my stroker VQ37HR engine build and didn't feel like forking out $115+ for a tool i probably won't need for a long time afterwards. When your dealing with expensive engine parts its best practice to not use a hammer to assembly or disassemble, particularly the connecting rod caps, hence the need for a rod splitter. Uses a standard 5/16" X 1.00" bolt, nut and washer for the splitting force. Designed to split a rod big end cap with an ID of appox. 2.125". I did try to make this in FreeCAD so anyone could modify for their needs but free time is short with a 6 month old so i modeled it in my native CAD software CREO 3.0. If you have a different size needed feel free to contact me an I can post a different size.
Compatible Cars
Originally published on thingiverse.com by Ian Spiller (ian99rt) · License: CC0
