OBS Ford Truck Ash Tray Repair Parts

0 downloads45 views0 likes

Shared by

3DPrintedCarPart

Verified

Description

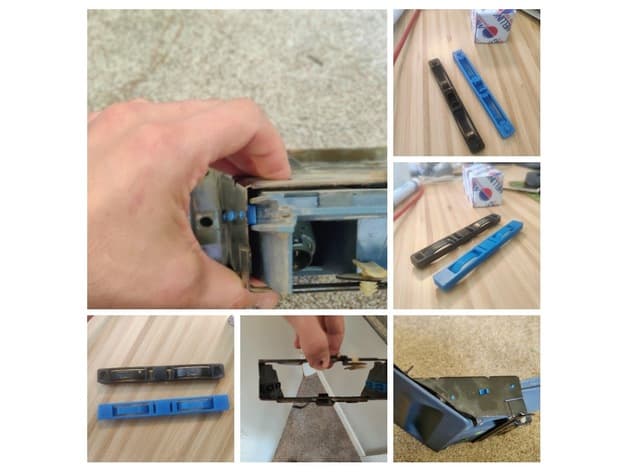

These are replacement parts that are commonly (at least I assume since my sister and I were both in need) lost/broken on OBS ford trucks. Tested on '95 F150 XL. The side rails have been modified from the original design to make printing easier, the springs super glue in from the back side. The clip take a 5/8" long wood screw to keep it from sliding out of position. The load is actually taken on the ridged of the original ABS ash tray component. Recommend printing in ABS. PLA will not last in a hot vehicle.

Compatible Cars

Ford F 150

Published Jun 28, 2026Updated Jul 15, 2026

Originally published on thingiverse.com by Noah Teichmiller (Call_Me-Tex) · License: CC BY
