Opel Zafira-A compatible fuel tank cap - image

Files (2)

fuel_tank_cap.stl

STL

3.2 MB

O-ring.stl

STL

1.1 MB

Print guidance estimate

Slicer data required

Print cost & setup estimate

Setup guidance plus saved or slicer-confirmed filament, cost, and time. Model file size is never treated as printable volume.

2 model files

Typical selected file

Slice required

Choose the needed variant and slice it; source file size is not printable volume.

Material cost

Slice required

Use the slicer's filament total; STL/3MF byte size is not a cost input.

Print time

Slice required

Slice with the recommended material, infill, orientation, and supports.

STL file	Role	Source size	PETG / ASA 20%	PETG / ASA 25%	100% solid	Recommendation
fuel_tank_cap.stl	Cover / cap	3.2 MB STL	Slice file	Slice file	Slice file	Use PETG / ASA; check sealing faces and supports unlikely, but verify in slicer.
O-ring.stl	Printable file	1.1 MB STL	Slice file	Slice file	Slice file	Use a brim to prevent warping, especially for the first few layers

Saved setup guidance is used for material, infill, support, and per-file recommendation text; editable numbers are planning estimates only.

Mechanical/Functional

Opel Zafira-A compatible fuel tank cap

0 downloads34 views0 likes

Shared by

3DPrintedCarPart

Verified

Description

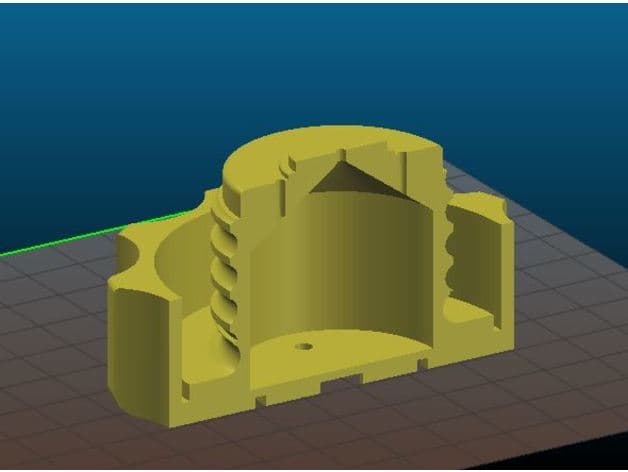

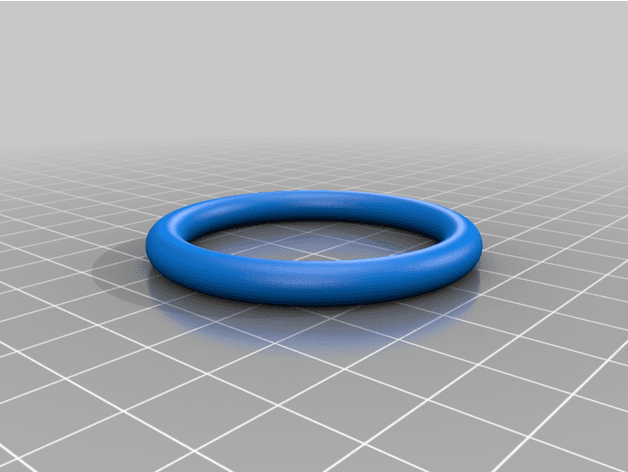

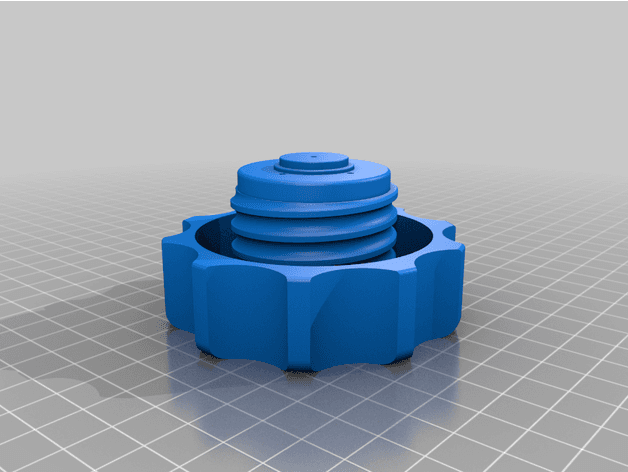

This is a fuel tank cap that I printed for my Opel Zafira-A. I printed it out of PETG as I understand it can handle petrol vapors quite well. It is printed hollow and with holes (like the brand model) that allow air in or out so that no vacuum or pressure builds up in the tank. No supports needed. I only used a 10mm brim one layer high brim to prevent the piece from curling when printing the first few layers. The O-ring can be printed with Ninjaflex (also suitable for te application) or you can just buy a set of o-rings to fit the cap (like I did). I don't know if it will fit any other car models, haven't tried it. I just kept forgetting mine at gas stations and it just took so long to get another one by order. Infill: 25% triangle pattern Perimeters: 3 Top/bottom layers: 6 Layer resolution: 0.2mm Printing Speed: 60mm/sec.
