Porsche Center Lock

0 downloads53 views0 likes

Shared by

3DPrintedCarPart

Verified

Description

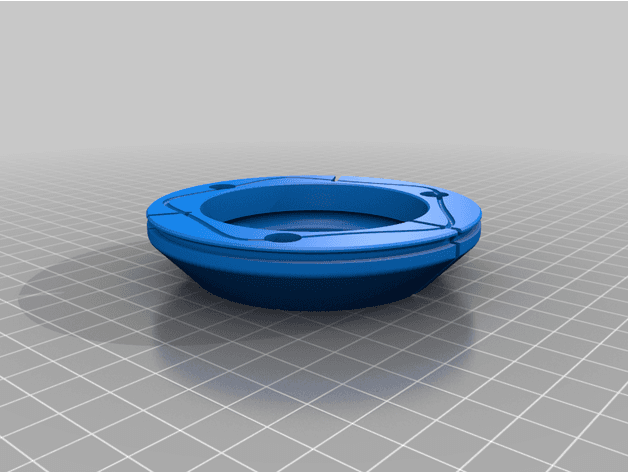

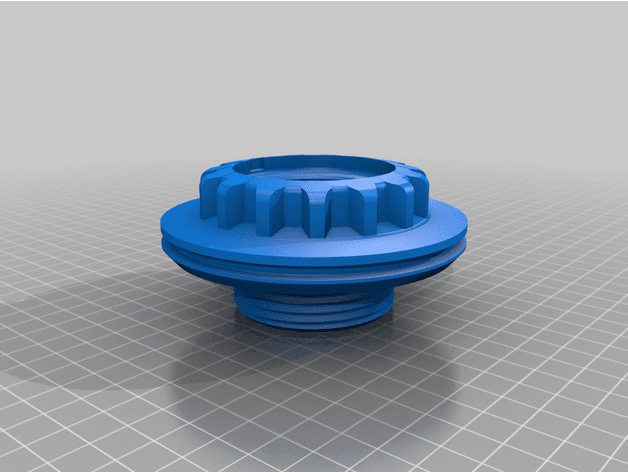

This is a center lock i designed from a Porsche 991 center lock with a few rough dimensions compared to the original part. This is a 7 part model with 5 printable parts as the two other parts are the O-rings around the cap and the Center lock main body. As for the printable parts, the washer is not necessarily needed for assembly. The locking ring is put in the groove of the chamfer ring to lock it into place in the center lock main body. I will upload a stand when i have printed and test fitted the parts some time in the future.
