Interior

switch pannel D2500

0 downloads50 views0 likes

Shared by

3DPrintedCarPart

Verified

Description

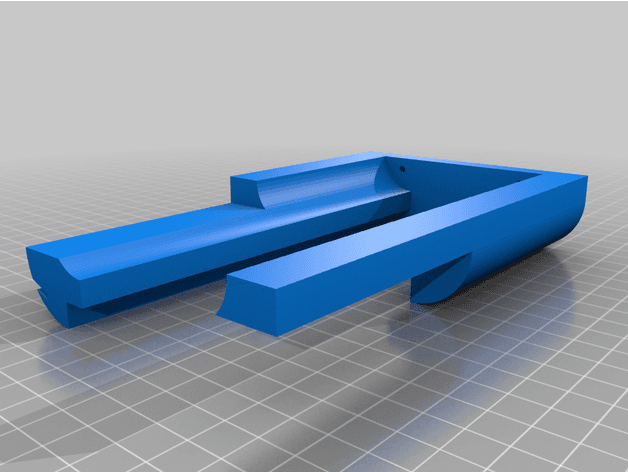

An auxiliary switch panel for 2002 and other dodge ram. I made this for my light bar switches, it fits at the top of where the waste basket used to be. there is a slot on the bottom to hold a flat panel which covers the rest of the opening and the relays I have in there. openings are 21.0mm X 36.0mm and bezel recess is 23.0mm X 38.7mm. The switch insert and the blank insert can swap sides and or you can replace the blank with your own custom insert; dimensions for the blank insert are just straight rectangular 94mm X 60mm X 8mm.
