Tesla Model 3 Jeda USB hub 30mm deep door

0 downloads47 views0 likes

Shared by

3DPrintedCarPart

Verified

Description

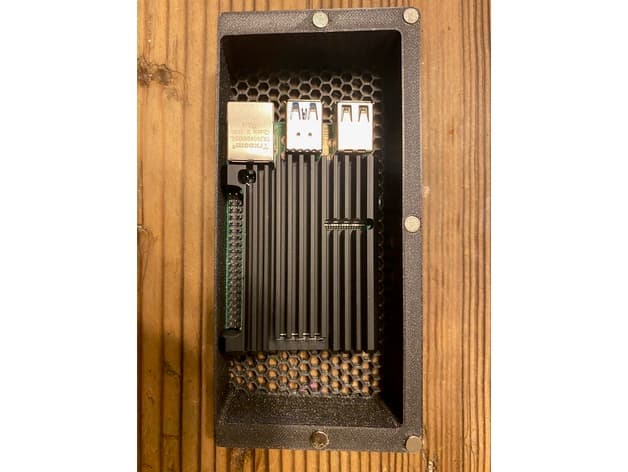

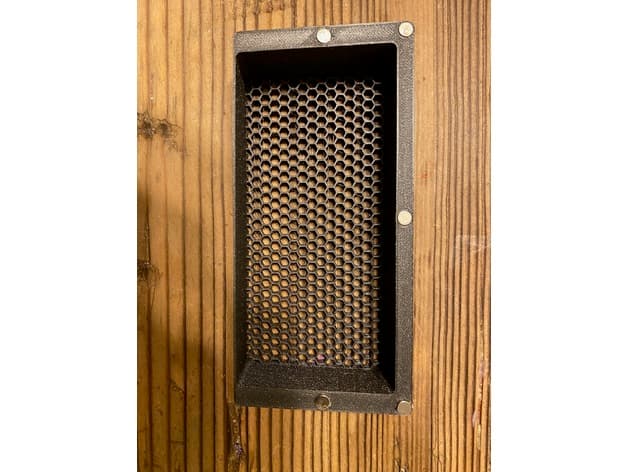

I designed this replacement door for the Tesla Model 3 Jeda USB Hub to accommodate my TeslaUSB RaspberryPi 4 by providing a 30mm deep cavity. I've also included honeycomb front face to allow for better air circulation. This may be useful for people with RaspberryPis, or large USB Drives. In order to get my RaspberyPi to fit I had to use a low profile USB-C ribbon cable This replacement door has 5 holes to accommodate 6mm diameter 3mm deep neodymium magnets. I was able to recycle the magnets from the original door by peeling back the rear veneer. Update - 2/17/2020: Added extra clearance for low profile USB plug. If you downloaded the previous version there is not enough room to plugin a full-sized Raspberry Pi
