Files (4)

TM3_Mud-guard_front_R.stl

STL

954.3 KB

TM3_Mud-guard_backplate_front_R.stl

STL

397.5 KB

TM3_Mud-guard_front_L.stl

STL

954.2 KB

TM3_Mud-guard_backplate_front_L.stl

STL

394.1 KB

Print guidance estimate

Uses saved filament metadata

Print cost & setup estimate

Setup guidance plus saved or slicer-confirmed filament, cost, and time. Model file size is never treated as printable volume.

4 model files

Recommended kit

50g

Based on 25% main infill across listed model files

Material cost

$1.20

Filament only at roughly $24/kg PETG / ASA

Print time

2.0h saved / 1.4h–2.4h estimate

Uses 70 mm/s, 0.2 mm layers; verify supports in slicer

STL file	Role	Source size	PETG / ASA 20%	PETG / ASA 25%	100% solid	Recommendation
TM3_Mud-guard_front_R.stl	Printable file	954.3 KB STL	Slice file	Slice file	Slice file	Ensure a clean and dry build plate for optimal adhesion
TM3_Mud-guard_backplate_front_R.stl	Printable file	397.5 KB STL	Slice file	Slice file	Slice file	Ensure a clean and dry build plate for optimal adhesion
TM3_Mud-guard_front_L.stl	Printable file	954.2 KB STL	Slice file	Slice file	Slice file	Ensure a clean and dry build plate for optimal adhesion
TM3_Mud-guard_backplate_front_L.stl	Printable file	394.1 KB STL	Slice file	Slice file	Slice file	Ensure a clean and dry build plate for optimal adhesion

Saved setup guidance is used for material, infill, support, and per-file recommendation text; editable numbers are planning estimates only.

Accessories

Tesla Model 3 Mud-guards front

0 downloads156 views0 likes

Shared by

Michael Chen

Verified

Description

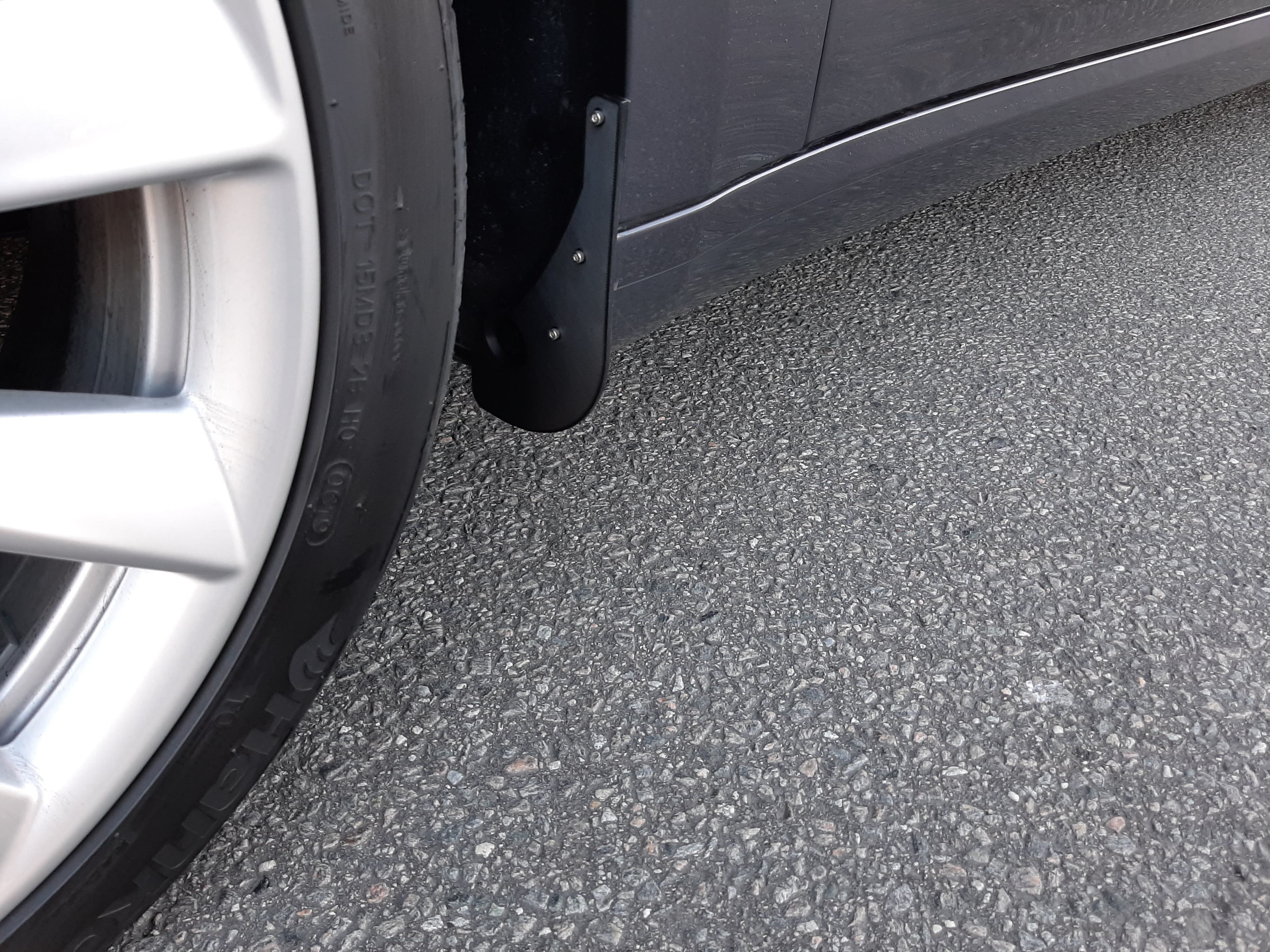

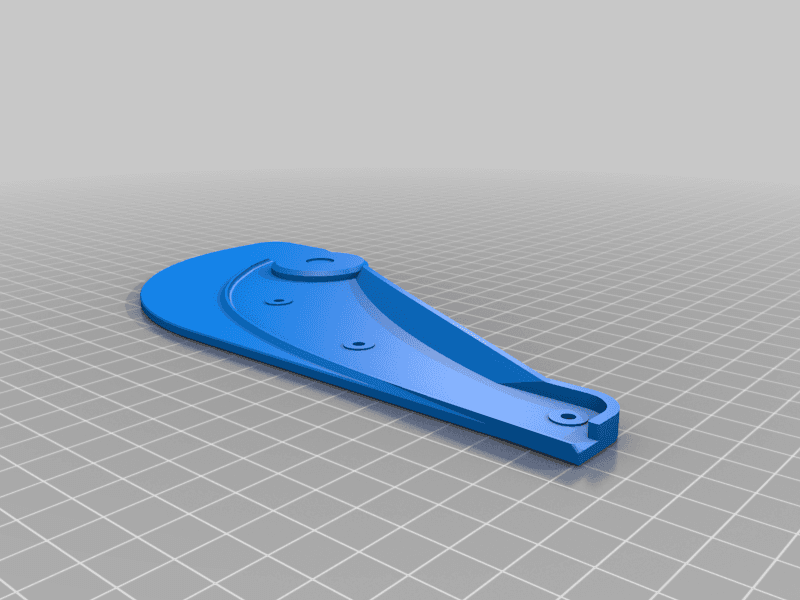

3D printed Mud guards for the Tesla Model 3 front wheels. Installation is very easy and takes only a few minutes. No drilling or other modifications is required. Print the parts, remove any sharp edges, blobs or other imperfections and open up the hole for the push-in clip. Rub over the visble areas with a 3M Scotch Brite pad and plenty of water to obtain a nice matte finnish. 6 pc M3x8mm stainless screws (hex button head or hex socket head recommended), 6 pc stainless M3 nuts. Please note that the screw length must be exactly 8mm. Allan-key for the M3 screws and a flat screw-driver for the Tesla push-in rivet Clean the area thoroughly, there must be no sand or dirt between the paint and the printed parts.
