Files (1)

WindowRegulatorClip.stl

STL

242.5 KB

Print guidance estimate

Slicer data required

Print cost & setup estimate

Setup guidance plus saved or slicer-confirmed filament, cost, and time. Model file size is never treated as printable volume.

1 model file

Recommended kit

Slice required

Slice the required model files; source file size is not printable volume.

Material cost

Slice required

Use the slicer's filament total; STL/3MF byte size is not a cost input.

Print time

Slice required

Slice with the recommended material, infill, orientation, and supports.

STL file	Role	Source size	PETG / ASA 20%	PETG / ASA 25%	100% solid	Recommendation
WindowRegulatorClip.stl	Clip	242.5 KB STL	Slice file	Slice file	Slice file	Print with the C shape on the print bed to align layer strength with the push/pull action

Saved setup guidance is used for material, infill, support, and per-file recommendation text; editable numbers are planning estimates only.

Mechanical/Functional

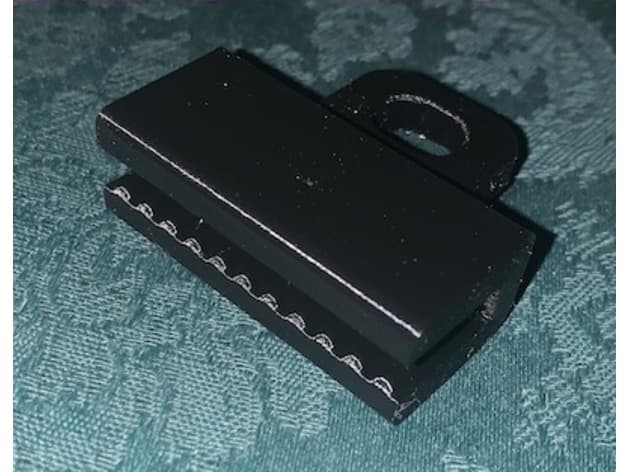

Toyota Window Regulator Clip

0 downloads39 views0 likes

Shared by

3DPrintedCarPart

Verified

Description

Created this for my dad's 2010 Toyota Tacoma. One of the regulator clips broke so I designed this and printed in PETG. Note: I printed it sideways with support under the bolt hole so the layer strength would be with the push/pull action from the regulator. (C shape of it on print bed) The teeth shouldn't need support, only the tail for the bolt. When installed it needs to be glued to the glass. It fits loose but is a closer tolerance than the factory one to make it stronger.
