Mechanical/Functional

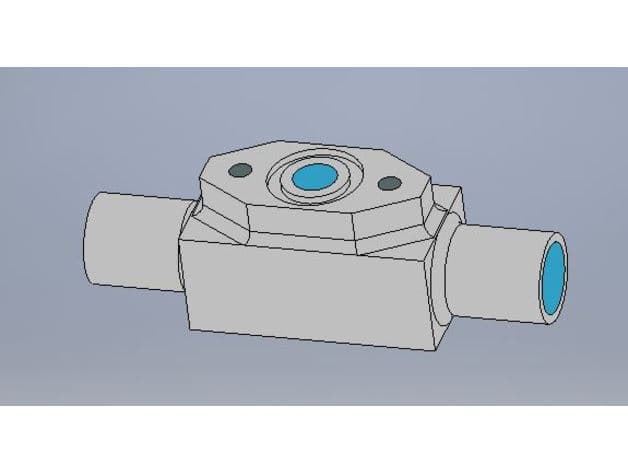

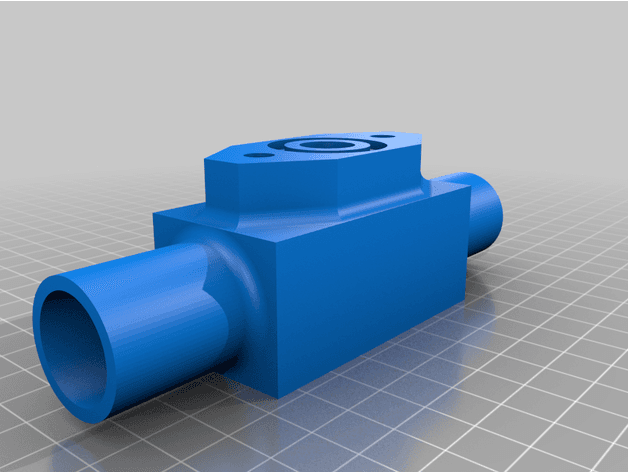

VAG Bosch Boost Adapter pipe

0 downloads46 views0 likes

Shared by

3DPrintedCarPart

Verified

Description

Nice little tool to diagnose boost pressure by using a OEM boost sensor. Can also be used to relocate the OEM pressure sensor. I made this to log pressure before intercooler via arduino to have more data from the car, since it is highly modified. I only tested the spacer plate some time ago. Today i created this pipe in 5 minutes, so i never tested it. Also i never tested without the Oring, so i cant tell if it is sealed without it. I included CAD Data, since there are different sensor diameters or maybe someone needs other hose diameters etc.
