Window Crank Handle for Volkswagen - image

Files (5)

Window_Crank_01_Cap_V2.STL

STL

39.0 KB

Window_Crank_02_Handle.stl

STL

419.4 KB

Window_Crank_00_Crank_TESTPART.STL

STL

278.3 KB

Window_Crank_03_Crank.stl

STL

321.7 KB

Window_Crank_04_Washer.stl

STL

38.8 KB

Print guidance estimate

Estimated from part metadata

Print cost & setup estimate

Planning numbers for filament, cost, time, and setup. Treat them as estimates until you confirm the file in your slicer.

5 model files

Recommended kit

50g

Based on 25% main infill across listed model files

Material cost

$1.20

Filament only at roughly $24/kg PETG / ASA

Print time

2.0h saved / 1.4h–2.4h estimate

Uses 70 mm/s, 0.2 mm layers; verify supports in slicer

STL file	Role	Source size	PETG / ASA 20%	PETG / ASA 25%	100% solid	Recommendation
Window_Crank_01_Cap_V2.STL	Cover / cap	39.0 KB STL	6g $0.14	6g $0.15	14g $0.34	Use PETG / ASA; check sealing faces and verify in slicer.
Window_Crank_02_Handle.stl	Printable file	419.4 KB STL	12g $0.30	13g $0.32	29g $0.70	Use a metal washer if possible for added durability
Window_Crank_00_Crank_TESTPART.STL	Printable file	278.3 KB STL	11g $0.26	12g $0.28	25g $0.61	Use a metal washer if possible for added durability
Window_Crank_03_Crank.stl	Printable file	321.7 KB STL	11g $0.27	12g $0.29	27g $0.64	Use a metal washer if possible for added durability
Window_Crank_04_Washer.stl	Printable file	38.8 KB STL	6g $0.14	6g $0.15	14g $0.34	Use a metal washer if possible for added durability

Saved setup guidance is used for material, infill, support, and per-file recommendation text; editable numbers are planning estimates only.

Exterior

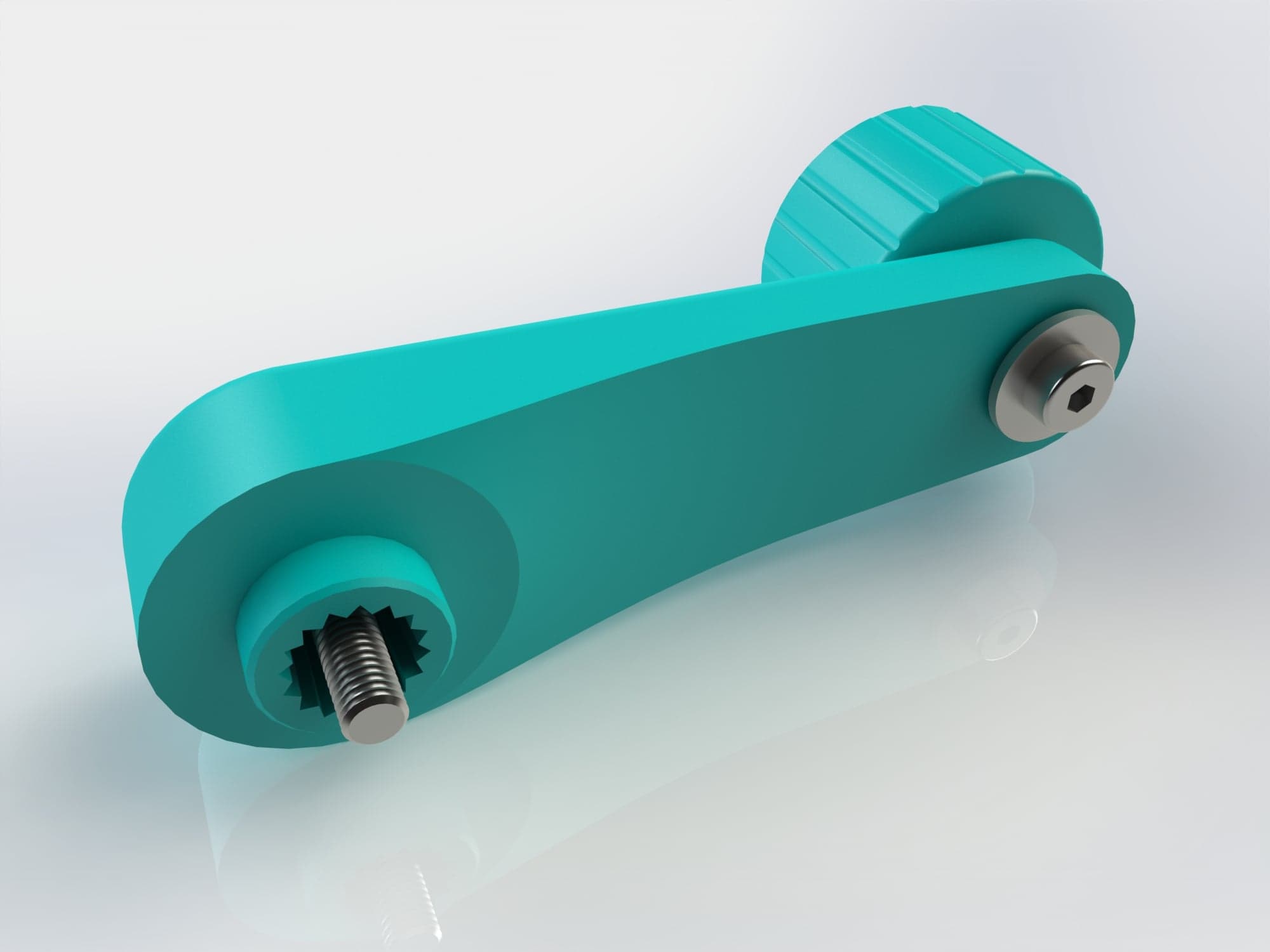

Window Crank Handle for Volkswagen

14 downloads2.3K views0 likes

Need this part printed?

Tell us what you need and we'll help you get it 3D printed. Takes a minute — no account needed and no payment is collected.

Request print / quote

Opens a quick request form. No order is placed and no payment is collected. Prefer email? Email us instead.

Shared by

Michael Chen

Verified

Description

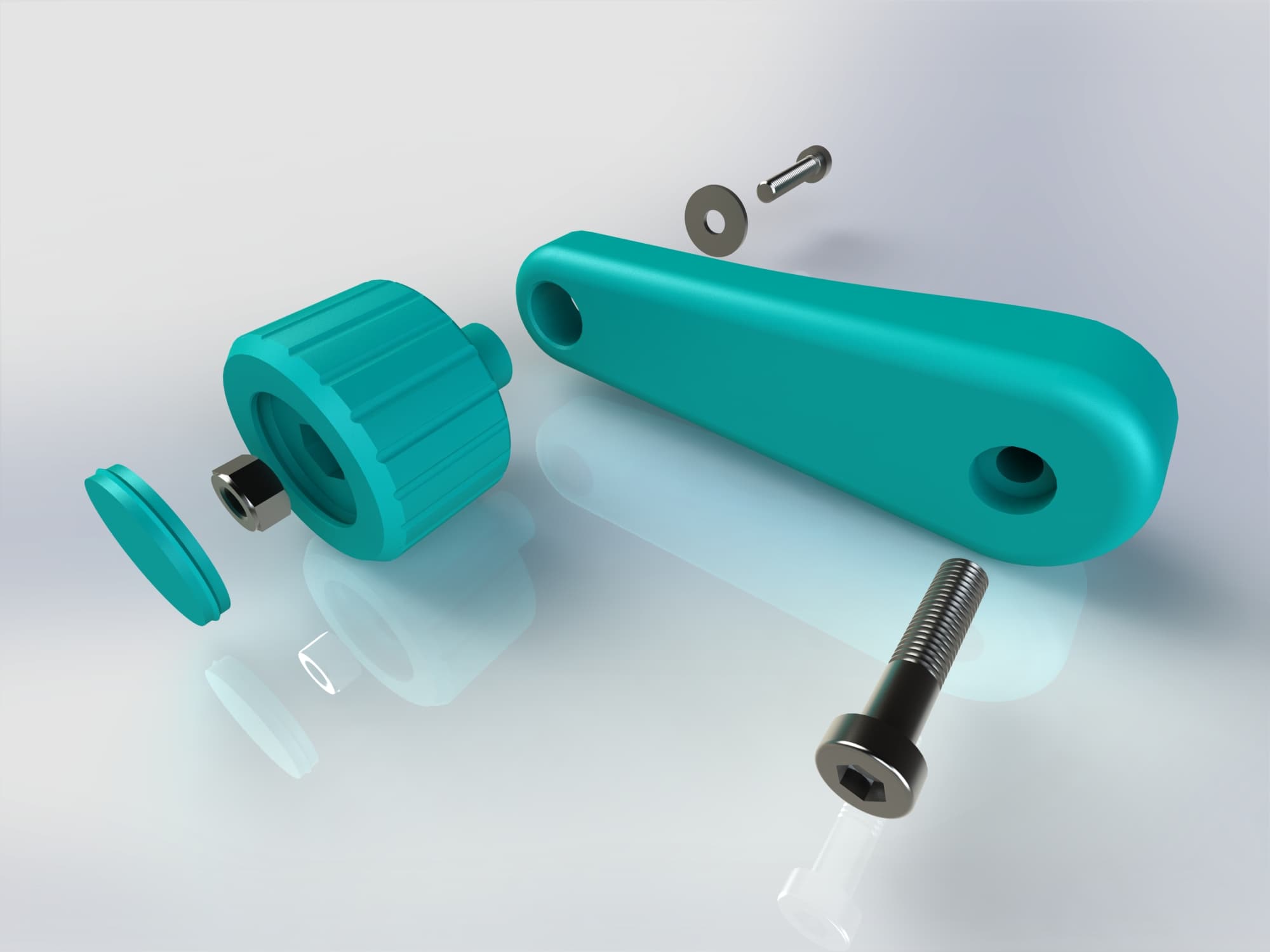

Window crank fits on most models of Volkswagen company! There is also a testpart in here that you can print and test whether the crank will fit on your pin. Use metal washer, in case you can get it (ID > 5mm, OD 14-22mm). Otherwise print the provided washer. See Explosion-Drawing for arrangement. For this Model metric screws (M5) were used.
