Files (6)

Window_louvers_left.stl

STL

294.2 KB

Window_louvers_left_counter.stl

STL

138.0 KB

Window_louvers_left_round.stl

STL

294.5 KB

Window_louvers_right.stl

STL

294.2 KB

Window_louvers_right_counter.stl

STL

138.0 KB

Window_louvers_right_round.stl

STL

294.5 KB

Print guidance estimate

Slicer data required

Print cost & setup estimate

Setup guidance plus saved or slicer-confirmed filament, cost, and time. Model file size is never treated as printable volume.

6 model files

Typical selected file

Slice required

Choose the needed variant and slice it; source file size is not printable volume.

Material cost

Slice required

Use the slicer's filament total; STL/3MF byte size is not a cost input.

Print time

Slice required

Slice with the recommended material, infill, orientation, and supports.

STL file	Role	Source size	PETG / ASA 20%	PETG / ASA 25%	100% solid	Recommendation
Window_louvers_left.stl	Choose left variant	294.2 KB STL	Slice file	Slice file	Slice file	Use PETG / ASA, 4 walls, 25% infill. Pick the matching side before printing.
Window_louvers_left_counter.stl	Choose left variant	138.0 KB STL	Slice file	Slice file	Slice file	Use PETG / ASA, 4 walls, 25% infill. Pick the matching side before printing.
Window_louvers_left_round.stl	Choose left variant	294.5 KB STL	Slice file	Slice file	Slice file	Use PETG / ASA, 4 walls, 25% infill. Pick the matching side before printing.
Window_louvers_right.stl	Choose right variant	294.2 KB STL	Slice file	Slice file	Slice file	Use PETG / ASA, 4 walls, 25% infill. Pick the matching side before printing.
Window_louvers_right_counter.stl	Choose right variant	138.0 KB STL	Slice file	Slice file	Slice file	Use PETG / ASA, 4 walls, 25% infill. Pick the matching side before printing.
Window_louvers_right_round.stl	Choose right variant	294.5 KB STL	Slice file	Slice file	Slice file	Use PETG / ASA, 4 walls, 25% infill. Pick the matching side before printing.

Saved setup guidance is used for material, infill, support, and per-file recommendation text; editable numbers are planning estimates only.

Vents

Window louvers for camper van

0 downloads83 views0 likes

Shared by

3DPrintedCarPart

Verified

Description

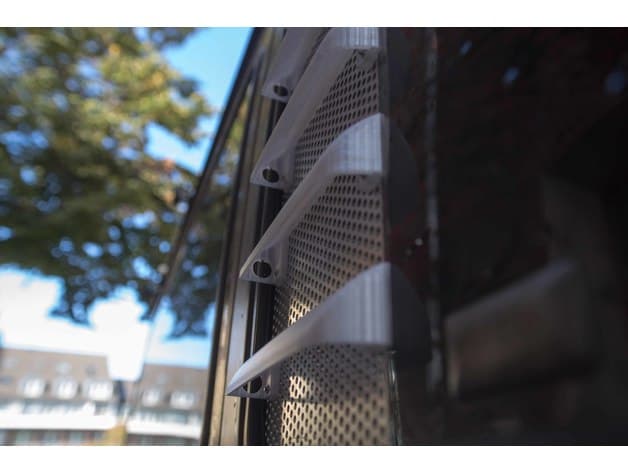

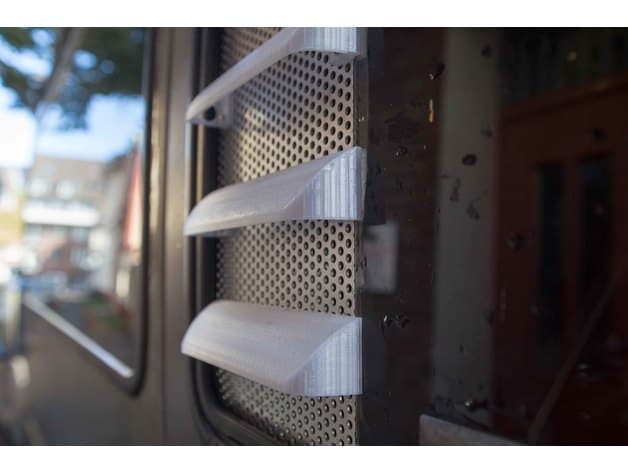

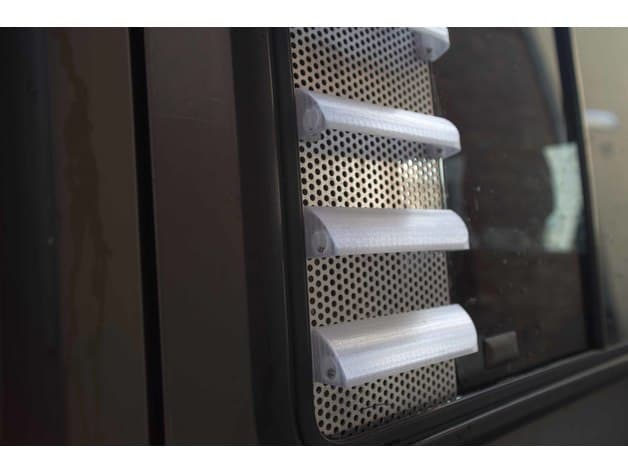

I would be very happy about a Tip. Check out my other designs for expedition vehicles and camper vans. ##Window louvers for camper van Our expedition vehicle based on a Mercedes-Benz Sprinter 4×4 leaves only a few options to ventilate properly from the factory. Due to the curvature of the vehicle’s sides, it immediately rains in when the sliding window is open, and the airstream pushes inward unpleasantly while driving. I have made suitable perforated plates and transparent window lamellas constructed and 3d printed. This prevents the rain and allow it to have the window open at night. According to the grid size of the perforated plate, the vertical hole spacing is 24 mm and the horizontal hole spacing is 152.5 mm. Material 5x self-locking nut M3, stainless steel 4x M3 x 16 mm, countersunk screw, stainless steel ERYONE PETG, transparent https://www.amazon.de/Filament-Schwarz-ERYONE-3D-Drucker-3D-Stift/dp/B07XLC2FV9?__mk_de_DE=%C3%85M%C3%85%C5%BD%C3%95%C3%91&dchild=1&keywords=eryone%2Bpetg&qid=1632989846&sr=8-5&th=1&linkCode=sl1&tag=sciencefeles-21&linkId=4cbcc189c60332a5ac881b2bd7c9f2fd&language=de_DE&ref_=as_li_ss_tl *these are Amazon Affiliate Links. I would be very happy if youa re using them to support my work indirectly. Visit my website for more information: www.science-feles.de. > --------------------------------------------------------- > Ceterum censeo martem esse abeundum. > ---------------------------------------------------------.
