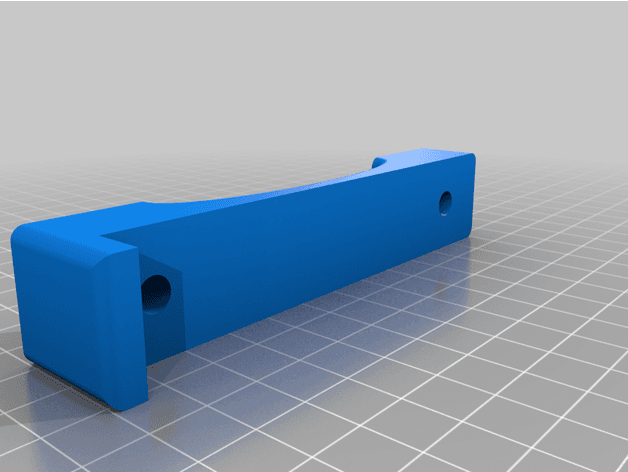

Awning brackets for Lexus GX 460 stock roof rails
Files (2)
Reference shelf
Recommended filament for this print
Product references matched to the published material guidance. Confirm diameter, heat resistance, colour, and printer compatibility.
| Referenced item | What to verify | Price & availability |
|---|---|---|
| PETG filamentAmazon · Affiliate link | Amazon product page for 1.75 mm PETG; confirm colour, spool size, print temperature, seller, and delivery region. | Check price at Amazon |
| ASA filamentAmazon · Affiliate link | Amazon product page for 1.75 mm ASA; use an enclosure and suitable ventilation, and confirm seller and regional availability. | Check price at Amazon |
Affiliate disclosure: if you buy through an eligible link, 3DPrintedCarPart may earn a commission at no extra cost to you. As an Amazon Associate I earn from qualifying purchases. Confirm product specifications, compatibility, seller terms, and vehicle safety before ordering or using anything. Amazon may redirect you to a nearby supported store; otherwise the original Amazon.com page remains available.
License & use
The file license permits commercial reuse, subject to any applicable attribution or share-alike terms. License status does not verify vehicle fitment, OEM rights, design patents, or safety.
Shared by
Ian Giles (1974Boler)Designers selling from the US, Canada, the UK, the EU/EEA (except Iceland), Switzerland and Gibraltar can also list separate original designs for sale and receive 80% of the listing price, paid out by Stripe in your local currency (conversion fees may apply). Claiming credits you here; it doesn't put this imported part up for sale.
Description
I wanted to mount a roof awning on my Lexus GX 460 using the stock aero type cross bars. Using these brackets along with aluminum T-slot channel results in an adjustable clamp. The T-channel needs the holes counter sunk to accept a 1/4"x20 - 1.5" long flat head bolt, the bolt heads should sit flush with the bottom of the channel to allow the T-slot bolts to slide in. I used ARB awning bracket with gusset, part number 813402 to mount the Shady Boy awning. This system allows the awning to be easily and quickly installed or removed. You will need 4 brackets, 2 for each crossbar. The 1/4" nuts are a tight fit and will need to be tapped in with a hammer. The awning is attached using 1" long T-slot bolts (one in each bracket) and a star wheel or quick nut. The brackets also fit gen 4, 4Runner and will probably will fit other models, please let me know if these fit your crossbars. Material list 4 - 114mm long T-channel 4 - 1/4"-20 by 1" T-blots 4 - 1/4"-20 star wheel / quick nuts 8 - 1/4"-20 flat head bolts 8 - 1/4"-20 nylock nuts Links to products used: https://www.shadyboy.com/ https://www.amazon.com/ARB-813402-Bracket-Pre-Drilled-Gusseted/dp/B071G3V8MF?th=1 https://www.leevalley.com/en-ca/shop/hardware/jig-and-fixture-parts/52400-veritas-double-t-slot-track https://www.leevalley.com/en-ca/shop/hardware/jig-and-fixture-parts/100804-t-bolts-for-veritas-t-slot-tracks-5-16-18-thread https://www.amazon.com/POWERTEC-71121-Piece-T-Bolt-Kit/dp/B079JN1DSK/ref=pd_sbs_6/145-1527334-2258646?pd_rd_w=Lc3L8&pf_rd_p=3676f086-9496-4fd7-8490-77cf7f43f846&pf_rd_r=TC0AE0P5RM83VVHWVNCT&pd_rd_r=28f1d5b7-bc9c-4982-9b46-87275b52d32c&pd_rd_wg=F1yCb&pd_rd_i=B079JN1DSK&psc=1
Originally published on thingiverse.com by Ian Giles (1974Boler) · License: CC BY
