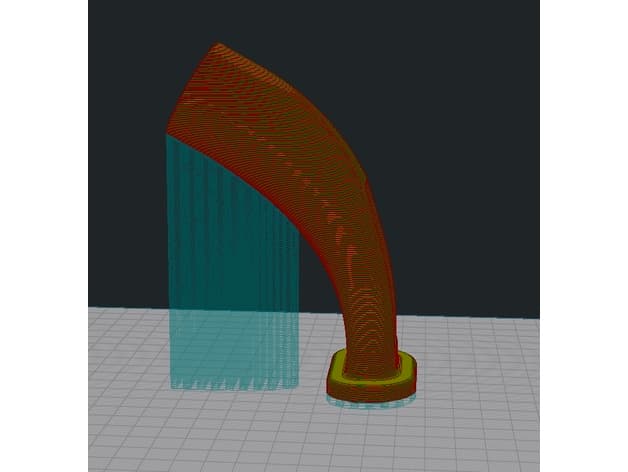

Ansaugbrueckenreinigung_oval.stl	Printable file	5.3 MB STL	Slice file	Slice file	Slice file	Ensure the adapter is printed with the correct orientation to minimize supports
Ansaugbrueckenreinigung_rund.stl	Printable file	5.2 MB STL	Slice file	Slice file	Slice file	Ensure the adapter is printed with the correct orientation to minimize supports

Saved setup guidance is used for material, infill, support, and per-file recommendation text; editable numbers are planning estimates only.

Tools & Jigs

BMW N47 N57 walnut blasting adapter

0 downloads44 views0 likes

Shared by

3DPrintedCarPart

Verified

Description

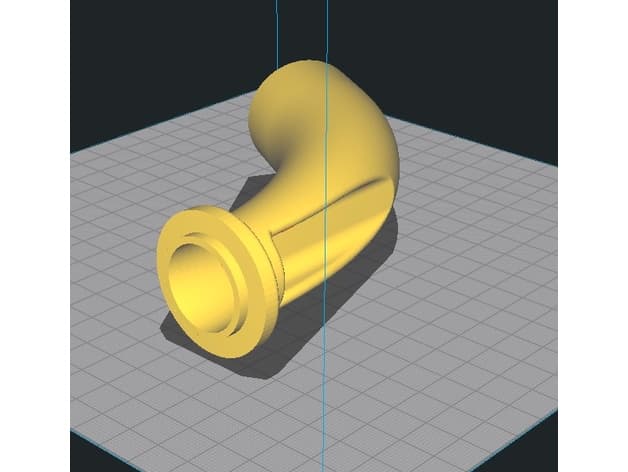

This is a vacuum adapter for walnut blasting the intake ports on BMW N57 and N47 engines. The design is as similar as possible to the original BMW adapter to fit direct onto the cylinder head ports. The connection to the vacuum cleaner hose is: - inner diameter: 34mm - outer diameter: 39mm The blasting nozzle diameter should not exceed 8mm to fit through the injection hole.
