Interior

Dodge Challenger > 2015 strut tower cover

0 downloads34 views0 likes

Shared by

3DPrintedCarPart

Verified

Description

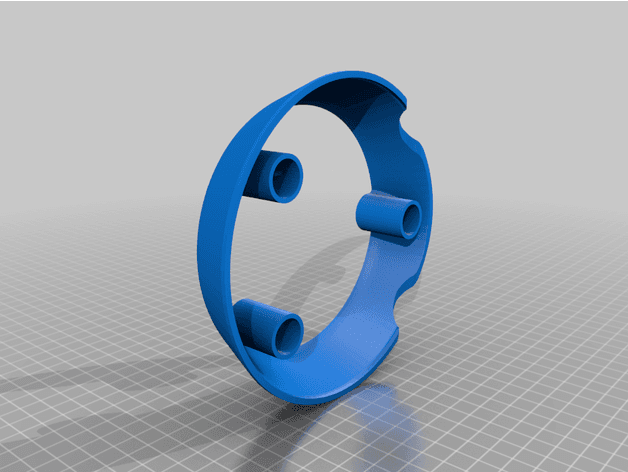

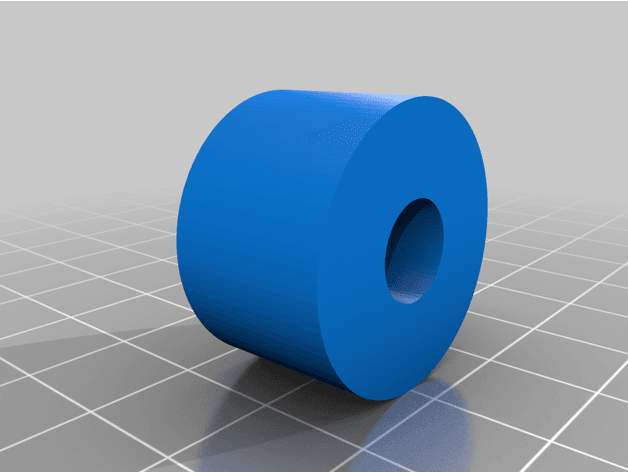

Strut tower cover. Designed with detached top (for now). This is easyer to print. And there are options what top to use, with or without logo. Also the center nut is excentric to the cover, if top is detached it is easy to align. Put coupler on the middle axle, Put the cap on and turn it till it lines up with the lower part. This to be sure the logo is pointing the right way. Then glue in the logo and the cap on the coupler to keep everything in place. I willing to make a new design in a short while that clicks on without having to align and glue. Fits left anf right Best printed in a heat resistant material like PETG or ABS.
