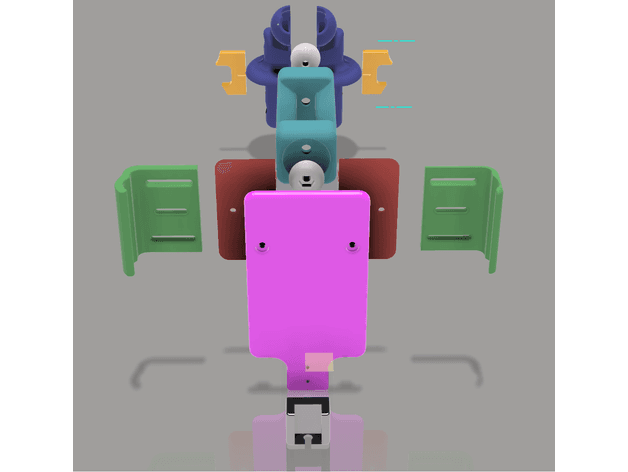

Fiat Punto 2013 TomTom/Phone Holder - image

Files (8)

Back_Plate_V2.stl

STL

661.4 KB

Dash_Plug_Left.stl

STL

1.3 MB

Dash_Plug_Right.stl

STL

1.3 MB

inner_ball.stl

STL

370.4 KB

Lock_Clip.stl

STL

92.8 KB

Side_Clamp_V2.stl

STL

504.2 KB

Swing_Arm_Short.stl

STL

1.2 MB

USB_V2.stl

STL

239.9 KB

Print guidance estimate

Slicer data required

Print cost & setup estimate

Setup guidance plus saved or slicer-confirmed filament, cost, and time. Model file size is never treated as printable volume.

8 model files

Typical selected file

Slice required

Choose the needed variant and slice it; source file size is not printable volume.

Material cost

Slice required

Use the slicer's filament total; STL/3MF byte size is not a cost input.

Print time

Slice required

Slice with the recommended material, infill, orientation, and supports.

STL file	Role	Source size	PETG / ABS 20%	PETG / ABS 25%	100% solid	Recommendation
Back_Plate_V2.stl	Printable file	661.4 KB STL	Slice file	Slice file	Slice file	Ensure dimensional calibration is accurate due to small tolerances
Dash_Plug_Left.stl	Choose left variant	1.3 MB STL	Slice file	Slice file	Slice file	Use PETG / ABS, 4 walls, 25% infill. Pick the matching side before printing.
Dash_Plug_Right.stl	Choose right variant	1.3 MB STL	Slice file	Slice file	Slice file	Use PETG / ABS, 4 walls, 25% infill. Pick the matching side before printing.
inner_ball.stl	Printable file	370.4 KB STL	Slice file	Slice file	Slice file	Ensure dimensional calibration is accurate due to small tolerances
Lock_Clip.stl	Clip	92.8 KB STL	Slice file	Slice file	Slice file	Ensure dimensional calibration is accurate due to small tolerances
Side_Clamp_V2.stl	Printable file	504.2 KB STL	Slice file	Slice file	Slice file	Ensure dimensional calibration is accurate due to small tolerances
Swing_Arm_Short.stl	Printable file	1.2 MB STL	Slice file	Slice file	Slice file	Ensure dimensional calibration is accurate due to small tolerances
USB_V2.stl	Printable file	239.9 KB STL	Slice file	Slice file	Slice file	Ensure dimensional calibration is accurate due to small tolerances

Saved setup guidance is used for material, infill, support, and per-file recommendation text; editable numbers are planning estimates only.

Phone Mounts

Fiat Punto 2013 TomTom/Phone Holder

0 downloads45 views0 likes

Shared by

3DPrintedCarPart

Verified

Description

This is a REMIX of another creator and model, for a different version of FIAT/ALFA: the inclination of the dashboard is different, as the distance from the driver. Thanks to him I've edited the original F360 file and did several fixes and improvements: - head ball rotated of 30° upward - swing arm made shorter - different USB C cable holder. - bigger backplate for 5" phone and bigger. - dash plug a little bigger - fixed all the holes for a perfect fillet. PRINT IT IN ABS OR PETG, DON'T USE PLA. TEST YOUR DIMENSIONAL CALIBRATION BEFORE PRINT...tolerance here are very small. Original Assembly instructions: https://imgur.com/a/MSMyT Things you'll need: Required hardware: 4 x M5 20mm hex bolts 2 x M5 nuts 2 x M3 15mm screws 2 x M3 nuts 2 x R1.5mm 6mm self-tapping plastic screws (for the lightning clip) 1 x Spring from a ball point pen.

Compatible Cars

Fiat Punto

Updated Jul 15, 2026

Originally published on thingiverse.com by Niki Giada (Skyfinder84) · License: CC BY
