Hyundai armrest replacement clip
License & use
Files stay with the original publisher; this catalog entry does not grant hosting or resale rights. License status does not verify vehicle fitment, OEM rights, design patents, or safety.
Shared by
Eladio Martinez (mafe72)Designers selling from the US, Canada, the UK, the EU/EEA (except Iceland), Switzerland and Gibraltar can also list separate original designs for sale and receive 80% of the listing price, paid out by Stripe in your local currency (conversion fees may apply). Claiming credits you here; it doesn't put this imported part up for sale.
Description

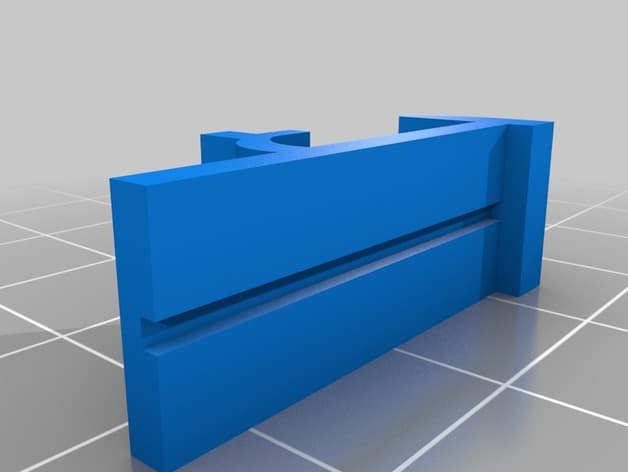

The armrest clip on my 2013 Hyundai broke, so I decide to print a replacement for it, this clip is printed with ABS and only 7% infill, creating a very flexible part on the spring and body, the lock head is designed with thick walls to make it strong even with low infill. To install the clip, just use the guide on the back of the model to center it and push it down until it locks in place. Hopefully, this part is useful to someone; I’m including the source SketchUp file in case someone needs to customize this model. Update 11/03/2016: If you are having problems with the clip not holding tight the armrest, I have added the v2 model that will fix this issue.
Compatible Vehicles
Originally published on thingiverse.com by Eladio Martinez (mafe72) · License: CC BY-NC-SA
