Center Console

Id.4 Center Console Divider

0 downloads29 views0 likes

Shared by

3DPrintedCarPart

Verified

Description

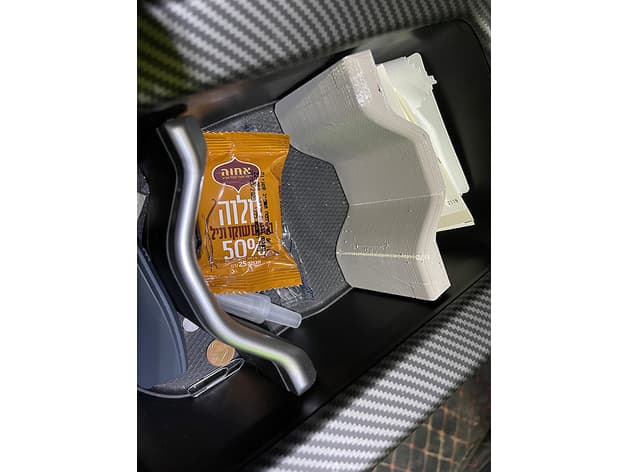

This is a modular design for the center console divider for a Volkswagen ID.4. There are four examples. - Mittelteil Standard is close to the original divider that comes with the car. - Tray is just to show the idea of the modular design, it is I guess not very practical. - CC Card Mittelteil is a simple divider with space for two credit cards. *As of 5-16-22, this is untested!!!!* - Mittelteil simpel is the same as CC Card, just without the slots. All of this has been done in OnShape.
