Mounting for the TEYES/KINGBEATS head unit (for Toyota Prius ZVW30)

0 downloads35 views0 likes

Shared by

3DPrintedCarPart

Verified

Description

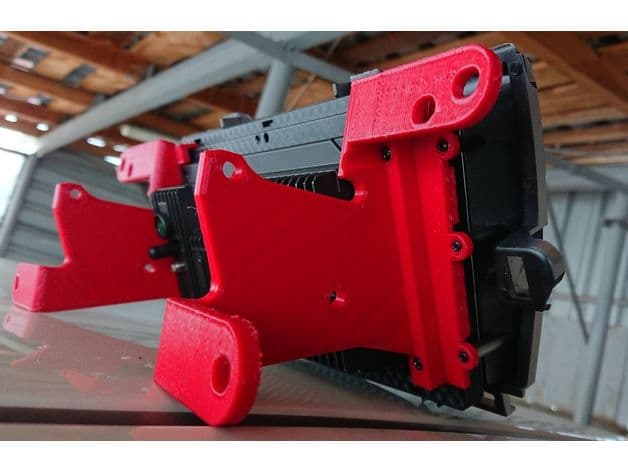

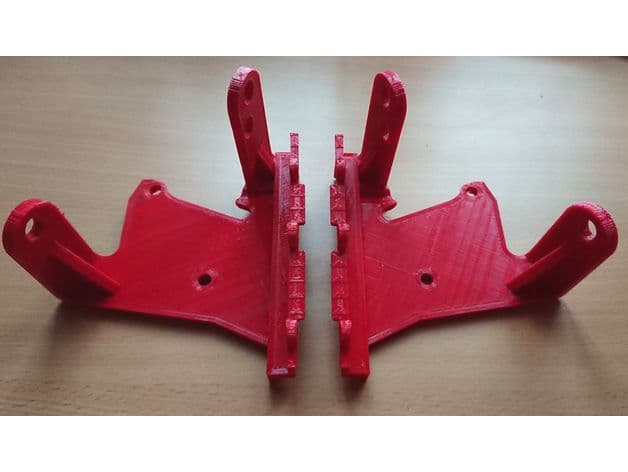

The standard KINGBEATS K2+ for the 2010 Toyota Prius ZVW30 is mounted onto the radio frame using an adapter frame. Both frames are equipped with clips. However, this standard adapter frame didn’t fit into the radio frame. I had to trim the adapter frame and its clips slightly. This resulted in the adapter frame falling through the radio frame. So, I decided to print the mounting based on the standard metal mounting that comes with the head unit. My model is for the right-side mounting. The left-side mounting is symmetrical, so you would have to mirror my model. I printed my mounting using supports. The orientation of the mounting model is presented on the screen shots from Ultimaker Cura attached below. I’m sharing this model with you, guys. Hope it’ll be of use.
