Porsch Cam Tool Bushing

0 downloads51 views0 likes

Shared by

Verified

Description

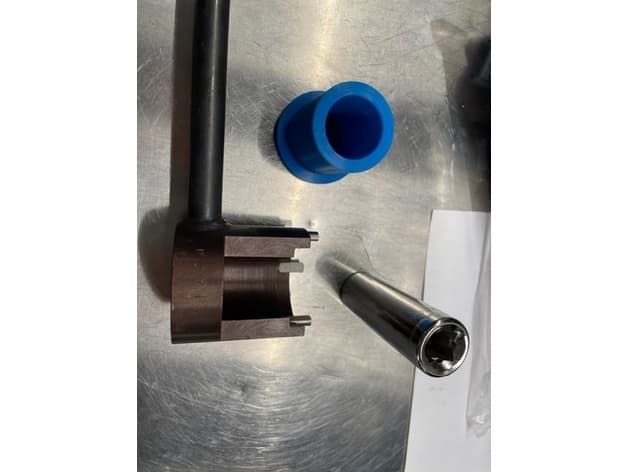

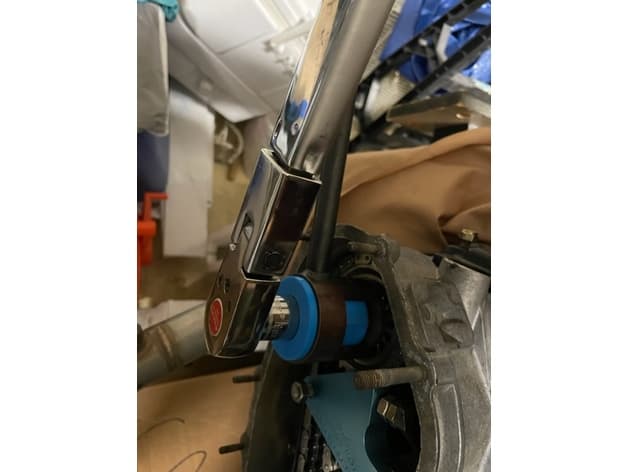

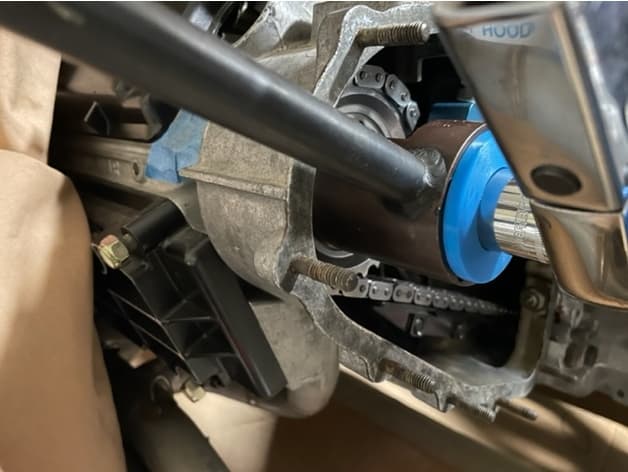

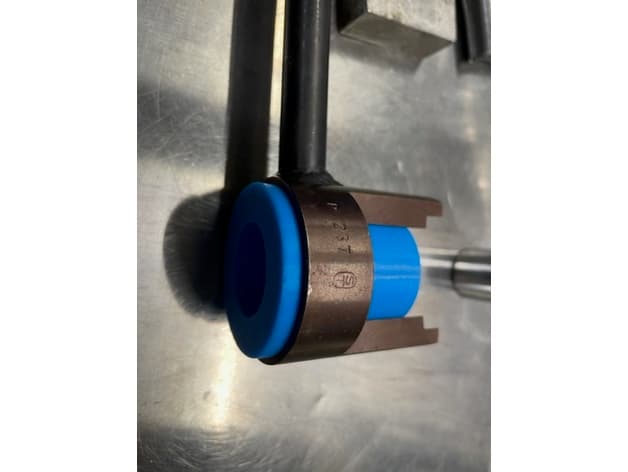

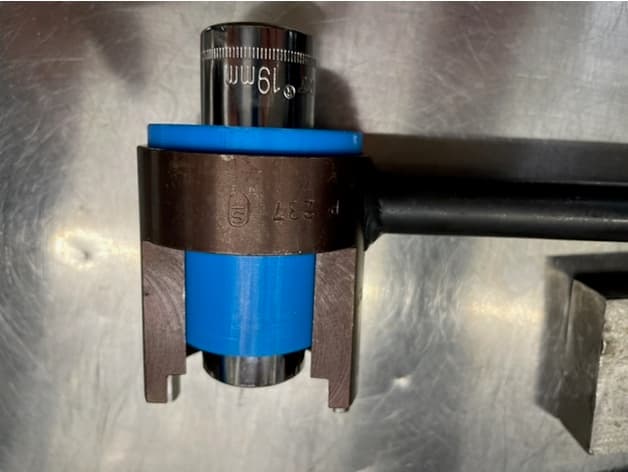

This bushing pits inside of a P237 Cam tool from Sir tools. It was a press fit (used a vice to push it in). It keeps the cam nut socket (19mm Deep) aligned with the bolt. This makes it an easy one man job to torque the bolt to spec. I used a socket from Amazon (link below). I included the Fusion360 file so that you can modify it to fit your socket or tool as they may very. This would also fit the Porsche 9191 tool if modified. 19mm Deep Socket: https://www.amazon.com/gp/product/B078Z2KZQN?ie=UTF8&psc=1&linkCode=sl1&tag=rennsport-20&linkId=e7e753f0a3dadb339ef6853e8c3a3fa0&language=en_US&ref_=as_li_ss_tl
