Slim Jack pad for BMW vehicles (New Version)

0 downloads48 views0 likes

Shared by

3DPrintedCarPart

Verified

Description

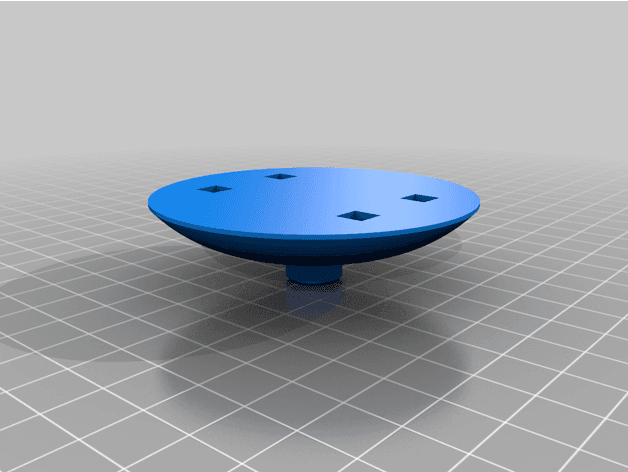

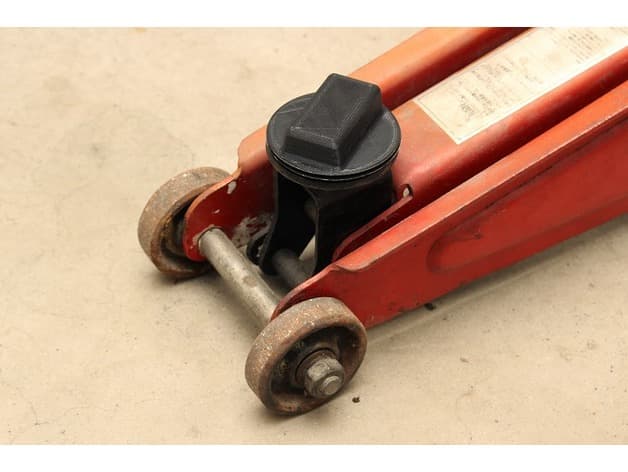

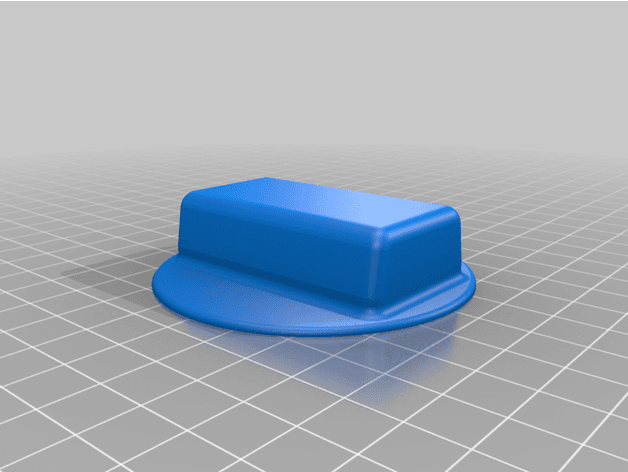

Slim Jack pad for BMW vehicles (New Version) https://www.thingiverse.com/thing:2922332 (Old Version) New version is added some improvements. Dividing the upper part and the lower part, it is possible to make the thing easily, strong, and beautiful. Printing the lower part in the direction such as the photo, and glue two parts together by acetone etc. I recommend remodeling the lower part to fit your own hydraulic Jack. Features: Low profile shape is easy to put underneath the lifting block. Top of the pad supports car body. So it prevent from damaging a edge of the lifting block. Cautions: Pull off a pin of a hydraulic jack and put it on a metal cup. I made this tool to use my hydraulic jack for BMW E46. Please check the shape is suit for your hydraulic jack.
