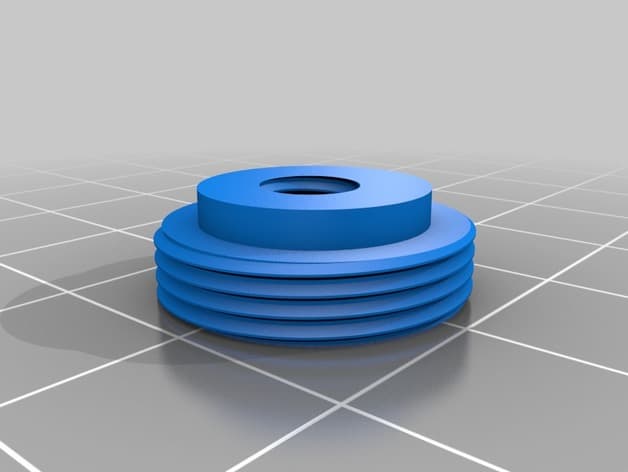

Smart Fortwo center console M6 screw with standard M6x30 bolt - image

Files (2)

Smart_Fortwo_Screw_-_Bottom_part.stl

STL

902.8 KB

Smart_Fortwo_Screw_-_Top_part.stl

STL

849.3 KB

Print guidance estimate

Estimated from part metadata

Print cost & setup estimate

Planning numbers for filament, cost, time, and setup. Treat them as estimates until you confirm the file in your slicer.

2 model files

Recommended kit

57g

Based on 25% main infill across listed model files

Material cost

$1.38

Filament only at roughly $24/kg PETG / ASA

Print time

1.6h–2.7h

Uses 70 mm/s, 0.2 mm layers; verify supports in slicer

STL file	Role	Source size	PETG / ASA 20%	PETG / ASA 25%	100% solid	Recommendation
Smart_Fortwo_Screw_-_Bottom_part.stl	Printable file	902.8 KB STL	27g $0.64	29g $0.70	64g $1.53	Ensure proper orientation in slicer for optimal printing
Smart_Fortwo_Screw_-_Top_part.stl	Printable file	849.3 KB STL	26g $0.63	28g $0.68	62g $1.49	Ensure proper orientation in slicer for optimal printing

Saved setup guidance is used for material, infill, support, and per-file recommendation text; editable numbers are planning estimates only.

Center Console

Smart Fortwo center console M6 screw with standard M6x30 bolt

0 downloads36 views0 likes

Shared by

3DPrintedCarPart

Verified

Description

Smart fortwo 450 bottom center console screw replacement. This model has a slightly thicker head then the original, but fits with the original screw caps. Print out both the top and bottom part. In addition you need a standard M6x30 bolt with a standard 10mm hexagon top. Search for "m6x30 hex bolt" for example. As for the assembly, start with the top part (screw head) and push the bolt head in to the hex form. Then screw the bottom part on to the bolt with the completely flat part against the top. The two parts should be put together in the same direction they got printed. You will probably need a flat head screw driver or something flat on one side and a small/thin plier on the other side to screw the parts tightly together. A small cable cutter with thin jaws could also be used. NOTE THAT SCREW REPLACEMENT PROBABLY ONLY WORK WITH THE FIRST GENERATION SMART FORTWO (about 1998-2007).

Compatible Cars

smart Fortwo

Published Jun 30, 2026Updated Jul 15, 2026

Originally published on thingiverse.com by Mathias Langfjord (langfjord) · License: CC BY
