Strange B3359T Master Cylinder Proportioning Valve / Line Lock Mount

0 downloads51 views0 likes

Download at source

Shared by

3DPrintedCarPart

Verified

Description

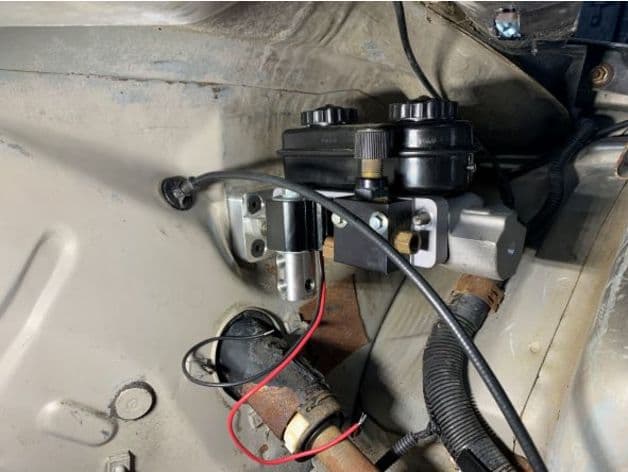

I designed this mount to work with a line lock solenoid and proportioning valve that I had on hand. It utilizes the pre-existing holes in the strange B3359T & B3360T. The Holes are 3/8" diameter at a 5.5" Spacing so this bracket may be able to work with other master cylinders. It is designed to add 5 M6 nuts to mount valve and solenoid and 2x M8 nuts for mounting to the master cylinder. Mounted in a 2001 Pontiac Firebird with Manual Brakes.
