Tesla Model S Parcel Shelf Lifter - image

Files (3)

Tesla_Model_S_Shelf_Lifter_-_Shelf_Mount.stl

STL

273.0 KB

Tesla_Model_S_Shelf_Lifter_-_Top_Clip.stl

STL

97.5 KB

Tesla_Model_S_Shelf_Lifter_-_Window_Mount.stl

STL

210.3 KB

Print guidance estimate

Slicer data required

Print cost & setup estimate

Setup guidance plus saved or slicer-confirmed filament, cost, and time. Model file size is never treated as printable volume.

3 model files

Typical selected file

Slice required

Choose the needed variant and slice it; source file size is not printable volume.

Material cost

Slice required

Use the slicer's filament total; STL/3MF byte size is not a cost input.

Print time

Slice required

Slice with the recommended material, infill, orientation, and supports.

STL file	Role	Source size	PETG / ABS 20%	PETG / ABS 35%	100% solid	Recommendation
Tesla_Model_S_Shelf_Lifter_-_Shelf_Mount.stl	Mount / bracket	273.0 KB STL	Slice file	Slice file	Slice file	Print each part with the recommended orientation to minimize supports
Tesla_Model_S_Shelf_Lifter_-_Top_Clip.stl	Clip	97.5 KB STL	Slice file	Slice file	Slice file	Print each part with the recommended orientation to minimize supports
Tesla_Model_S_Shelf_Lifter_-_Window_Mount.stl	Mount / bracket	210.3 KB STL	Slice file	Slice file	Slice file	Print each part with the recommended orientation to minimize supports

Saved setup guidance is used for material, infill, support, and per-file recommendation text; editable numbers are planning estimates only.

Trunk/Tailgate

Tesla Model S Parcel Shelf Lifter

0 downloads28 views0 likes

Shared by

3DPrintedCarPart

Verified

Description

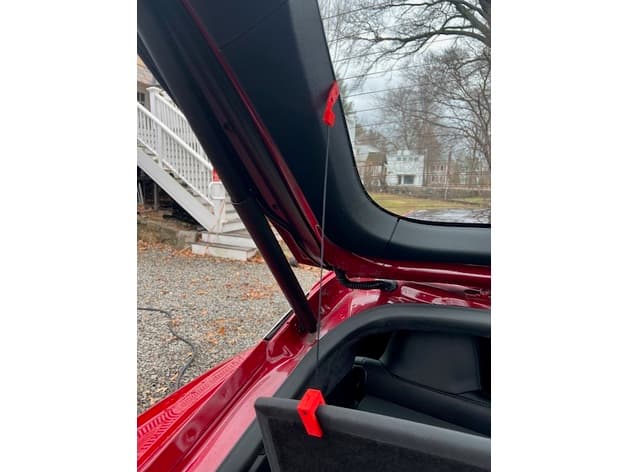

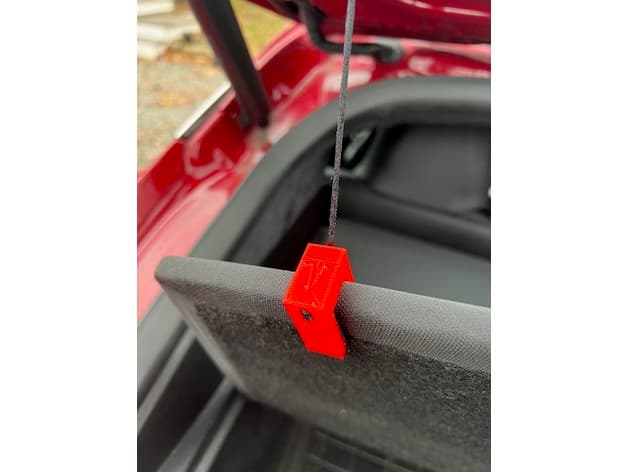

This is a rear parcel shelf lifter for the Tesla Model S. Inspired by the now removed https://www.thingiverse.com/thing:3721952 and incorporating the clip from https://www.thingiverse.com/thing:4285139 this auto lifts the rear parcel shelf in the Model S when the liftgate opens. It has a quick release clip which allows the shelf to be removed easily. Recommend one each side, but it seems to work with just one. Best printed in PETG or ABS to withstand summer heat. The red print is PLA for my testing, this was printed at 20% infill, no supports, no raft and works well. The only problem likely being durability in the summer. My final print was meant to be PETG in black, but this proved much harder. I'm not very experienced with non-PLA prints, so this took a lot of experimentation and fails. PETG is also more brittle... My final good results for the PETG prints were - - The window mount on its side, no supports 100% infill. - The top clip on its base, supports, 100% infill - The shelf lifter on its back, no supports, 50% infill
