Files (1)

VW_Rear_Footwell_Light_Holder.stl

STL

1.6 MB

Print guidance estimate

Slicer data required

Print cost & setup estimate

Setup guidance plus saved or slicer-confirmed filament, cost, and time. Model file size is never treated as printable volume.

1 model file

Recommended kit

Slice required

Slice the required model files; source file size is not printable volume.

Material cost

Slice required

Use the slicer's filament total; STL/3MF byte size is not a cost input.

Print time

Slice required

Slice with the recommended material, infill, orientation, and supports.

STL file	Role	Source size	PETG / ASA 20%	PETG / ASA 25%	100% solid	Recommendation
VW_Rear_Footwell_Light_Holder.stl	Mount / bracket	1.6 MB STL	Slice file	Slice file	Slice file	Print two sets, one left and one right, which are mirror images of each other.

Saved setup guidance is used for material, infill, support, and per-file recommendation text; editable numbers are planning estimates only.

Interior

VW Footwell Light Holder

0 downloads41 views0 likes

Shared by

3DPrintedCarPart

Verified

Description

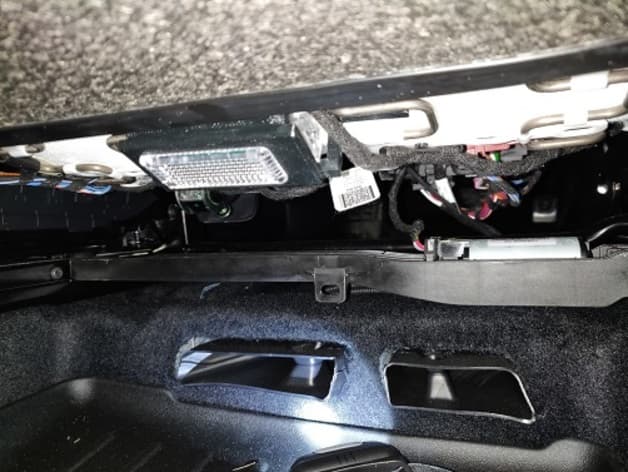

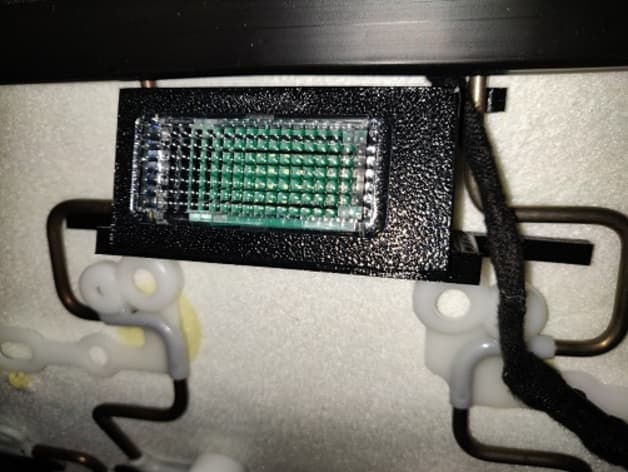

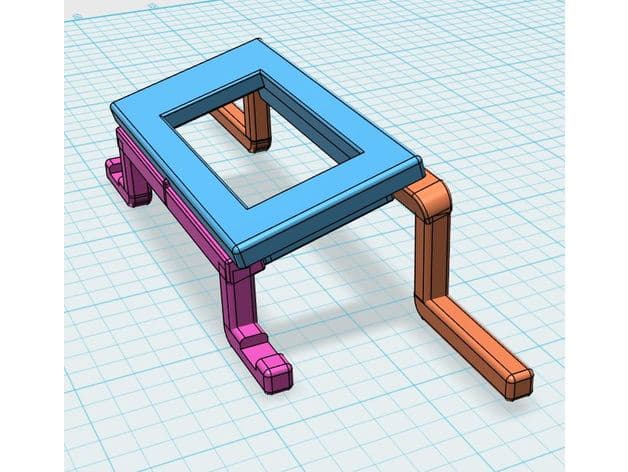

This is a Footwell light holder for VW modern vehicles. This actual application is on a 2020 Tiguan, but other modern VWs could have similar usage. Actual VAG part number is 565.881.547 but this is unavailable in the North America market (I believe this part is primarily for Skoda in Europe). This print closely resembles the functionality of this part while trying to make it easy to print. Update: Looks like the North American part is 4M0.881.547.4PK typically used on Audi's. You will need to print two sets of these (one left and one right). Glue to pieces together as shown. Keep in mind each one will need to be mirrors of each other as the wiring harness will exit in different directions for left and right assembly. The light 5GG.947.409 should snap into the cover and will be removable if needed (just as the OEM front lights do). Slide the whole assembly under the spring frame of the seat and then attach the two larger legs to the spring via tie clips. The lights are available on AliExpress already with wiring harness.
