CJ 5 ESC, Receiver and Battery Holder/Mount Part for RC Jeep Chassis - image

Files (2)

CJ_5_Side_Tray_Battery.stl

STL

26.4 KB

CJ_5_Side_Tray_ESC_1080_Flysky.stl

STL

32.7 KB

Print guidance estimate

Uses saved filament metadata

Print cost & setup estimate

Setup guidance plus saved or slicer-confirmed filament, cost, and time. Model file size is never treated as printable volume.

2 model files

Recommended kit

50g

Based on 25% main infill across listed model files

Material cost

$1.20

Filament only at roughly $24/kg PETG / ASA

Print time

2.0h saved / 1.4h–2.4h estimate

Uses 70 mm/s, 0.2 mm layers; verify supports in slicer

STL file	Role	Source size	PETG / ASA 20%	PETG / ASA 25%	100% solid	Recommendation
CJ_5_Side_Tray_Battery.stl	Printable file	26.4 KB STL	Slice file	Slice file	Slice file	Ensure proper orientation in the slicer for optimal printing
CJ_5_Side_Tray_ESC_1080_Flysky.stl	Printable file	32.7 KB STL	Slice file	Slice file	Slice file	Ensure proper orientation in the slicer for optimal printing

Saved setup guidance is used for material, infill, support, and per-file recommendation text; editable numbers are planning estimates only.

Exterior

CJ 5 ESC, Receiver and Battery Holder/Mount Part for RC Jeep Chassis

0 downloads137 views0 likes

Shared by

Michael Chen

Verified

Description

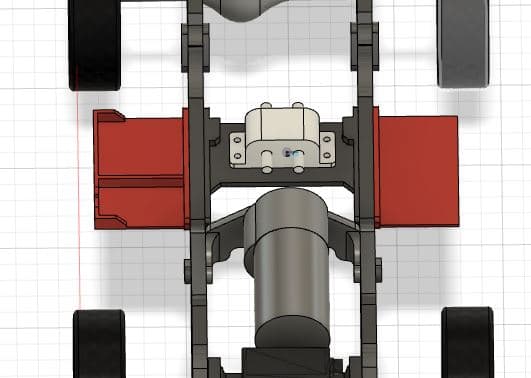

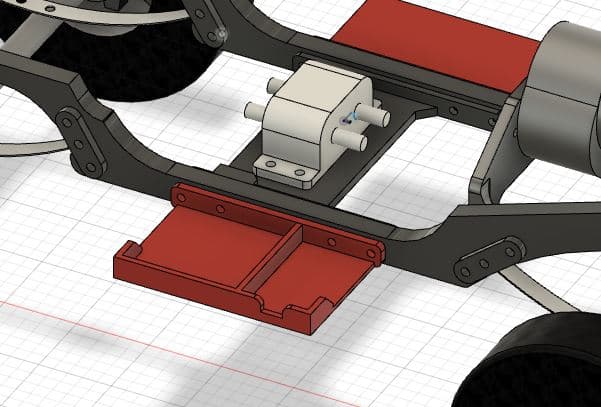

Made some additional Parts for my CJ 5 Jeep-Chassis https://www.thingiverse.com/thing:4224260 . Also works together with https://www.thingiverse.com/thing:4236036. These Parts are for ESC, Receiver and Battery You can simply use a cable tie to mount the Parts on top of the trays. The ESC-Size is for Hobbywing 1080 and Receiver is a Flysky with 3 Channels. 202-05-17: Added a new Tray for e.g. Batteries up to 112x35mm size.
